Options for Expanding Your Productivity

Simultaneously Control Up to Three Injection Units and Four Detectors

Up to four types of injection units or six types of detectors can be selected depending on the purpose of analysis and target components. Four detectors can be controlled simultaneously using LabSolutions.

Note: The number of detectors installed depends on the type. The injection port can control up to two devices simultaneously.

Inlets

Split/Splitless Injector (SPL)
  • The carrier gas saver function reduces split gas consumption.
  • Inactivation options
Direct Injection Unit (WBI)
  • Shares and simplifies the glass inserts for splitless analysis (patented).
On-Column Injection Unit (OCI)
  • Supports analysis of high-boiling compounds (straight-chain hydrocarbons with 100 or more carbons)
Programmed Temperature Vaporization Injector (PTV)
  • Uses an inert heat-resistant quartz insert.
Packed Column Injection Unit (SINJ)
  • Glas s packed column and SUS packed column can be connected.


Detectors

Barrier Discharge Ionization Detector (BID)



 The barrier discharge ionization detector (BID-2030) is a universal detector that offers high-sensitivity analysis by using a low-frequency dielectric barrier discharge plasma for ionization. The BID generates helium (He) plasma by applying a high voltage to a quartz glass tube. The light energy from the He plasma then ionizes the target components and the ions are collected and output as peaks using a collection electrode. A wide variety of compounds other than He and neon (Ne) are detected with high sensitivity.
Flame Ionization Detector (FID) The jet and collector structure on the flame ionization detector (FID-2030) has been optimized to provide improved performance. Noise levels were also decreased by improving the stability of the signal processor and flow controller. This results in the world’s most sensitive FID*.
Sulfur Chemiluminescence Detector (SCD) SCDs are the most sensitive GC detectors for measuring sulfur components. The Nexis SCD-2030 is equipped with an ultra-short flow path and high efficiency redox cell, so it provides the world’s highest level* of sensitivity and stability. In addition, detector startup is automated, easing the burden on operators.
Thermal Conductivity Detector (TCD)
  • Enables more reliable analysis that is less easily affected by column oven temperature.
  • Analysis for inorganic gases and high-concentration organic compounds.
Flame Photometric Detector (FPD)
  • A novel optical system with a more advanced dual-focus system results in the world's highest* sensitivity.
  • Analysis for organic phosphorus compounds and sulfur compounds.
Electron Capture Detector (ECD)
  • High sensitivity and a wide dynamic range are achieved by adopting ECD cell structure and purge flowrate optimization, as well as highly durable materials.
  • Analysis for electrophilic compounds.
Flame Thermionic Detector (FTD)
  • An improved collector reduces the negative peaks from
    impurity components.
  • Collectors can be replaced without tools.
  • Analysis for organic nitrogen compounds and organic phosphorus compounds.



*As of July 2021, according to a Shimadzu survey

GC Software

  • Shimadzu GC Driver Ver. 2.2 with Agilent OpenLab™ CDS Compatibility
    Shimadzu GC Driver for OpenLab CDS
    • GC Software
    • Drivers
    Agilent OpenLab CDS chromatography data systems can now be used to control AOC-30 autoinjectors in Shimadzu Nexis™ GC-2030 systems and perform packed column analysis. Space-saving AOC-30 systems offer reliable and long-term performance, and support capillary/packed column analysis using only a single GC-2030 system.
  • Shimadzu GC Driver Ver. 2.2 with Thermo Scientific™ Chromeleon™ Compatibility
    Shimadzu GC Driver for Chromeleon™ 7
    • GC Software
    • Drivers
    Chromeleon chromatography data systems can now be used to control AOC-30 autoinjectors in Shimadzu Nexis™ GC-2030 systems and perform packed column analysis. Space-saving AOC-30 systems offer reliable and long-term performance and support capillary/packed column analysis using only a single GC-2030 system.
  • Shimadzu GC Driver Ver. 3.2 with Waters Empower™ Compatibility
    Shimadzu GC Driver for Waters Empower
    • GC Software
    • Drivers
    Waters Empower chromatography data systems can now be used to control AOC-30 autoinjectors in Shimadzu Nexis™ GC-2030 systems and perform packed column analysis. Space-saving AOC-30 systems offer reliable and long-term performance, and support capillary/packed column analysis using only a single GC-2030 system.

LabSolutions Series

  • LabSolutions DB
    LabSolutions DB
    • LabSolutions Series
    • GC Software
    • LC Software
    LabSolutions DB has a data management function and is compliant with the ER/ES Regulations. It is optimally configured for customers using a PC.
  • LabSolutions Software
    LabSolutions CS
    • LabSolutions Series
    • GC Software
    • LC Software
    LabSolutions CS features an innovative operating environment and provides complete data management to ensure secure information in networked laboratories.

Related information

  • Nexis SCD-2030
    Nexis SCD-2030
    • GC Components & Accessories
    The Nexis™ SCD-2030 is a next-generation sulfur chemiluminescence detection system.
    The dramatically enhanced sensitivity and reliability, the excellent maintainability, and the automation functions will improve laboratory productivity.
  • Gasoline/Fuel Analysis
    Gasoline/Fuel Analysis
    • Application Specific GC Systems
    A gas chromatograph is used for composition analysis of gasoline and its additives in order to improve fuels' performance.

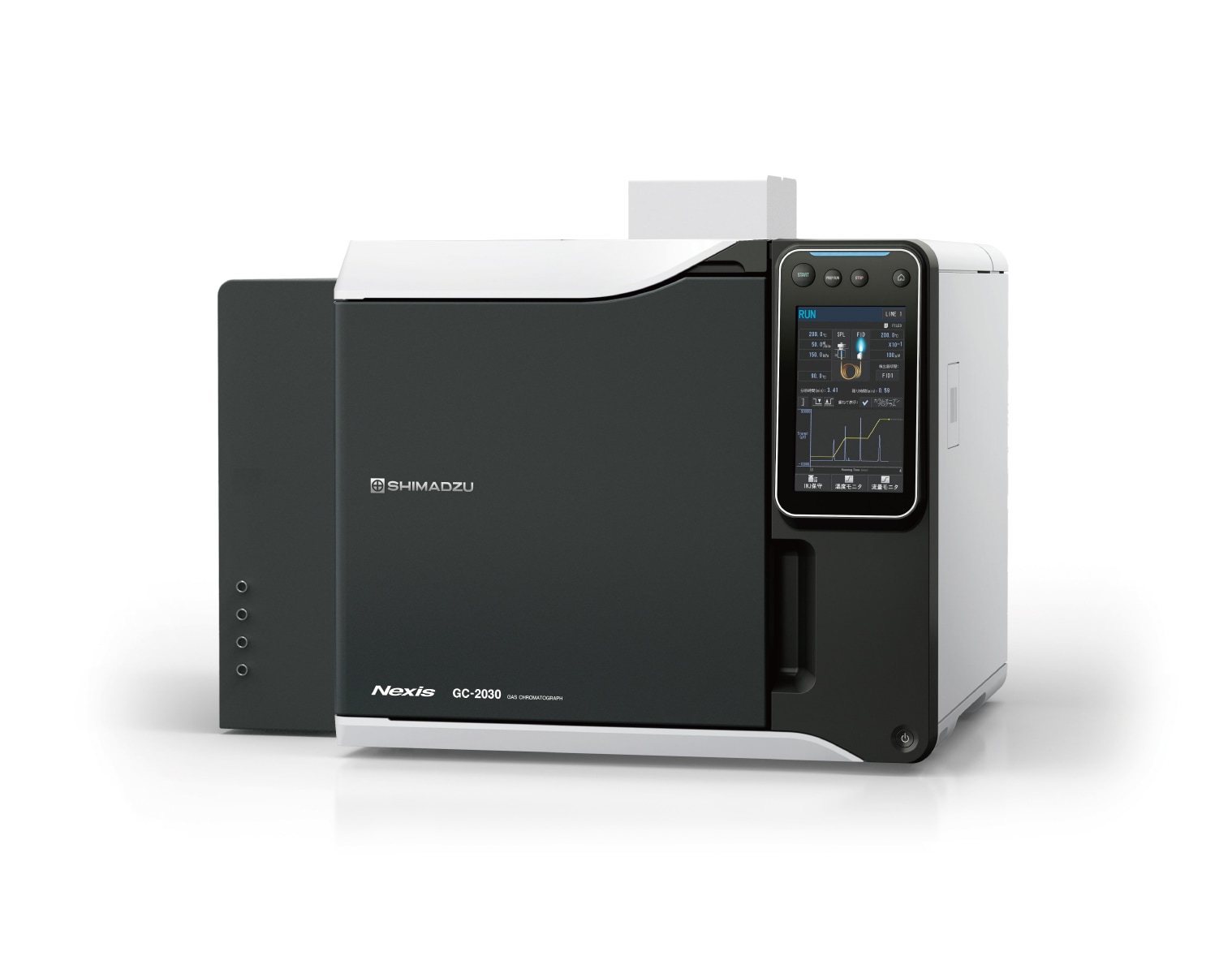

  • Trace Moisture Analysis System
    Trace Moisture Analysis System
    • Application Specific GC Systems
    Analyzing moisture, and how much of it, is critical to the performance of petroleum products, as well as infrastructure and product integrity.
  • Greenhouse Gas System
    Green House Gas Analysis
    • Application Specific GC Systems
    Gas chromatographs help analyze green house gases in air and soil.
  • Trace Sulfur Analysis
    Trace Sulfur Analysis
    • Application Specific GC Systems
    Some sulfur compounds are known to be not only hazardous but also catalytic poisons.
  • Transformer Oil Gas Analysis
    Transformer Oil Gas Analysis
    • Application Specific GC Systems
    It is necessary to analyze outgas in transformer insulation oil in power plant facilities.
  • VUV PIONA+ Analysis
    VUV PIONA+ Analysis
    • Application Specific GC Systems
    This high-speed gasoline PIONA analyzer is compliant with ASTM D8071.
  • Detailed Hydrocarbon Analysis
    Detailed Hydrocarbon Analysis
    • Application Specific GC Systems
    The purpose of detailed hydrocarbon analysis (DHA) is to determine the bulk hydrocarbon group type composition (PONA: Paraffins, Olefins, Naphthenes and Aromatics) of gasoline and other spark-ignition engine fuels that contain oxygenate blends (Methanol, ethanol, MTBE, ETBE, and TAME) according to ASTM-D6730.
  • GC-2030 with large valve oven
    Natural Gas Analysis
    • Application Specific GC Systems
    Recently, natural gas has been recognized as a clean resournce for energy, in addition to being a raw material for chemical products.
  • Gas Filter
    Gas Filter
    • GC & GC-MS Consumables
    Impurities in gases, such as hydrocarbons, moisture and oxygen, can contaminate the gas line and instrument, cause column degradation and affect the accuracy of your analysis results, which may lead to instrument downtime.
  • Capillary Column
    SH Series GC Columns
    • GC Columns
    • Columns
    Shimadzu supply fused silica, PLOT and metal GC columns which have a wide variety of both general-purpose and application-specific ones.
  • GC Columns & Consumables
    GC Consumables
    • Consumable Parts
    • GC & GC-MS Consumables
    GC Consumables are designed to complement your Shimadzu GC Systems.
  • Refinery Gas Analysis
    Refinery Gas Analysis
    • Application Specific GC Systems
    Gas compositions produced in refinery plants consist of hydrocarbons, permanent gases, H2S, etc.
  • Distillation Gas Chromatograph System
    Distillation Gas Chromatograph System
    • Application Specific GC Systems
    The Shimadzu simulated distillation system, consisting of a Nexis GC-2030 high-performance capillary gas chromatograph and LabSolutions simulated distillation GC analysis software, meets all applicable ASTM, ISO, EN, and JIS standards.
  • Py-GCMS
    Py-GCMS
    • GC-MS Components & Accessories
    Pyrolysis gas chromatography mass spectrometry (Py-GCMS) can be used to characterize most materials including insoluble and complex materials at trace levels often without any sample pretreatment e.g. polymers, plastics, rubber, paints, dyes, resins, coatings, cellulose, wood, textiles, oils etc.

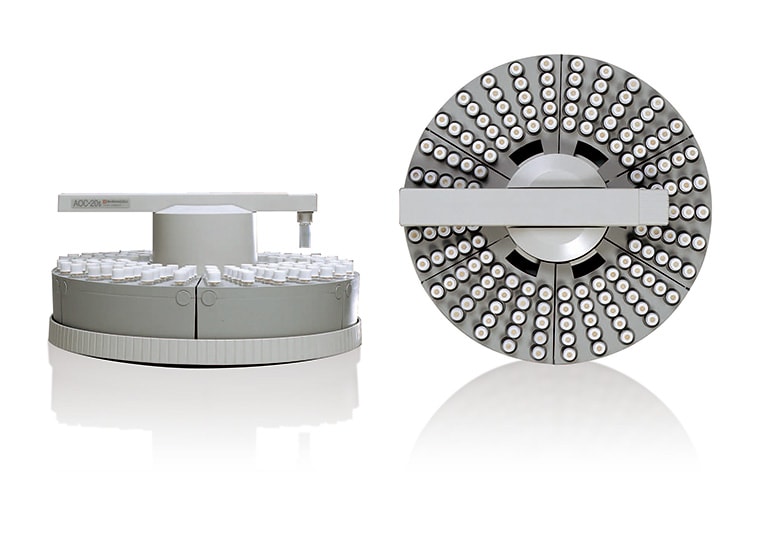

  • AOC-20i/AOC-20s
    AOC-20i/AOC-20s
    • GC-MS Components & Accessories
    The AOC-20 Series is the perfect solution for automated analyses.
  • HS-10
    HS-10
    • GC Components & Accessories
    The HS-10 headspace sampler is highly cost efficient, yet is equipped with advanced features such as a mixing function and the ability to heat-ahead the sample vials waiting for analysis.

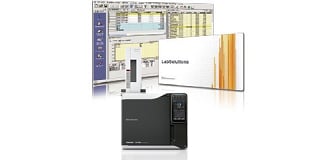

  • LabSolutions LCGC
