Upgrade Your Analysis with Nexis GC-2030 - Applications

Gas Chromatograph

{"hasMore":true,"more":{"id":"tbaleAnchor_more","label":"More"},"anchors":[{"id":"tbaleAnchor_applications","label":"Applications"},{"id":"tbaleAnchor_technical","label":"Technical Documents"},{"id":"tbaleAnchor_manual","label":"Manuals"}]} {"title":"Applications","columnTitle":"Applications","source":"product","key":3185,"filter_types":["applications","application_note","posters"],"config_list":[],"anchor":"tbaleAnchor_applications","filter":true} {"title":"Technical Documents","columnTitle":"Technical Documents","source":"product","key":3185,"filter_types":["technical","technical_reports","white_papers","primers"],"config_list":[],"anchor":"tbaleAnchor_technical","filter":true} {"title":"Manuals","columnTitle":"Manuals","source":"product","key":3185,"filter_types":["manuals"],"config_list":[],"anchor":"tbaleAnchor_manual","filter":true}

Pharmaceuticals
Food
New Energy
Petrochemical
Environment

Pharmaceuticals

UPS 467 Analysis of Residual Solvents in Pharmaceuticals

A headspace sampler maintains the sample at a constant temperature and then injects a fixed quantity of the gas phase generated into a GC unit. It is used for qualitative and quantitative analysis of volatile components in solid or liquid samples. The further strides in performance and user-friendly design of the HS-20 NX series provide strong support for a wide variety of analyses, from work in research departments to quality control.

Analysis of Trace Residual Solvents in Pharmaceuticals Using Headspace GC, Class 2 Standard Solution

HS-20 NX Series

Food

Analysis of Residual Pesticide in Foods

When analyzing residual pesticides in foods, it is advantageous to use a high-sensitivity selective detector. In contrast, an FID, which is suitable for a general-purpose application, is used to comprehensively measure many different pesticides.
Using an ECD/FPD detector configuration provides high-sensitivity analysis of phosphorus, sulfur, and halogen while an FID measures a wide variety of pesticides.

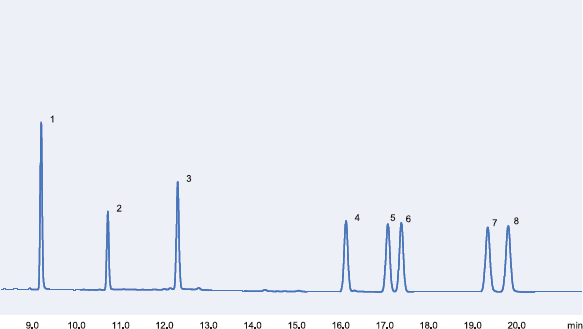

Analysis of Chlorinated Pesticides in Traditional Chinese Medicines via ECD
- 1 Hexachlorobenzene
  2 Quintozene
  3 Heptachlor
  4 Oxychlordane
- 5 Heptachlor-2,3-exo-epoxide
  6 Heptachlor endo-epoxide
  7 trans-Chlordane(γ)
  8 cis-Chlordane(α)

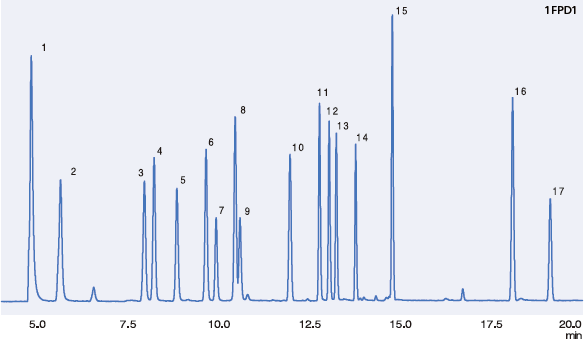

Analysis of Phosphorus Pesticides in Carrots via FPD
- 1 Omethoate
  2 Ethoprophos
  3 Phorate
  4 Fonofos
  5 Diazinon
  6 Iprobenfos
  7 Chlorpyrifos-methyl
  8 Paraoxon
  9 Fenitrothion
- 10 Bromophos
  11 Crotoxyphos
  12 Disulfoton sulfone
  13 Bromophos-ethyl
  14 Profenofos
  15 Ethion
  16 leptophos
  17 Pyrazophos

Analysis of Sulfur Compounds in Beer
Sulfur compounds in beer, which affect the aroma of the beer, can be quantified in the order of ng/mL by combining the headspace injection method and an SCD.

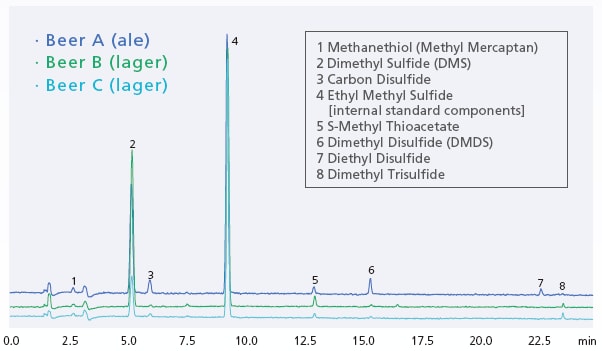

Chromatograms of Three Kinds of Beer

New Energy

Analysis of Impurities in Hydrogen Gas

Dual BIDs

The Nexis GC-2030 can be equipped with two BIDs. More qualitative information can be obtained from the same sample by attaching columns with different separation characteristics.

O2: approx. 100 ppm, N2: approx. 340 ppm,
Other impurities: approx. 0.2 ppm
O2: approx. 25 ppm, N2: approx. 160 ppm, CO2: approx. 0.4 ppm,
Other impurities: approx. 0.2 ppm

Simultaneous Analysis of Impurities in Hydrogen

Related Application News

Trace Impurity Analysis of Hydrogen Fuel in Fuel Cell Vehicle-Related Fields

Petrochemical

Refinery Gas Analysis System

Specialized systems can be configured by installing multiple valves and columns in the standard Nexis GC-2030 installation space. Inorganic gases, hydrocarbons, hydrogen sulfides, and other components can be analyzed within five and a half minutes. Method development is not required because systems are assembled and tested in advance at the factory, prior to arriving at your lab.

- [FID]
  1. C6⁺
  2. Methane
  3. Ethane
  4. Ethylene
  5. Propane
  6. Propylene
  7. Isobutane
  8. n-Butane
  9. Propadien
  10. Acetylene
  11. trans-2-Butene
- 12. 1-Butene
  13. i-Butene
  14. cis-2-Butene
  15. Isopentane
  16. n-Pentane
  17. 1,3-Butadien
  18. Methylacetylene
  19. trans-2-Pentene
  20. 2-Methyl-2-butene
  21. 1-Pentene
  22. cis-2-Pentene
- [TCD-1]
  23. Carbon dioxide
  24. Ethylene
  25. Ethane
  26. Acetylene
  27. Hydrogen sulfide
  28. Oxgen
  29. Nitrogen
  30. Methane
  31. Carbon Monoxide
- [TCD-2]
  32. Hydrogen

Analysis of Simulated Distillation
Simulated Distillation GC Analysis Software integrated with LabSolutions is compliant with ASTM, ISO, and various other standards that specify distillation GC. With high boiling point
compounds, sample loss can be minimized by using the OCI-2030 NX injection port.

Distillation Gas Chromatograph System
Chromatogram of Polywax (ASTM D 7500)

Monitoring Sulfur in Diesel Oil Distillates

Using a detector splitting device with minimal dead volume, it is possible to analyze the components in diesel oil comprehensively with MS, while simultaneously measuring* the sulfur components selectively and with high sensitivity using an SCD.

Simultaneous Analysis of Sulfur Standard Components in Diesel Using GC-MS and SCD

* LabSolutions DB GCMS or LabSolutions CS is required to acquire data simultaneously from a GCMS and SCD.

Sulfur Chemiluminescence Detection Gas Chromatograph System

Environment

Analysis of VOCs in Work Environments
Trace components in the air can be concentrated for measurement via thermal desorption. The TD-30 can accommodate up to 120 samples, and thanks to the repeated collection function, if a precious sample is analyzed incorrectly, it can be measured again.
Analysis of VOCs in Work Environments
