Upgrade Your Spectral Analysis with IRXross

Fourier Transform Infrared Spectrophotometer

Add Bookmark

IRXross FTIR Spectrophotometer
Request More Information

User-friendly and versatile Fourier transform infrared (FTIR) spectrophotometer

Fast and sensitive operation for accurate sample analysis

The IRXross™ can analyze a wide range of samples with speed and accuracy. It enables fast, high-resolution measurements, analyzing gases and reactions up to 20 spectra per second.

This model delivers many intuitive features, such as IR Pilot™ – a built-in analytical intelligence feature. With IR Pilot, you can run multiple different analyses with one click. The many pre-built, macro application programs can run many tests, including contaminant analysis, identification testing and pre-shipment inspections. Because of its versatility, the IRXross is ideal for many chemical and pharmaceutical applications.

Key Features

Key features of the IRXross FTIR Spectrophotometer

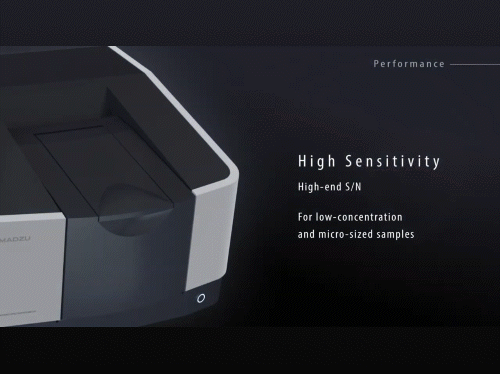

  • Ultra-high-sensitivity measurements
  • Low noise for more accurate data
  • Rapid Scan option for fast reactions
  • MCT kit option for enhancing sensitivity
  • Spectral library for analyzing contaminants and microplastics
  • Security features that comply with regulations

Quick Specs


Wavenumber Range		 7,800 to 350 cm−1

Resolution Range		 0.25, 0.5, 1, 2, 4, 8, 16 cm−1

Beam Splitter Type		 Germanium-coated KBr

Detector Type		 DLATGS detector with temperature control
MCT detector (Hg–Cd–Te) with liquid nitrogen cooling (option)

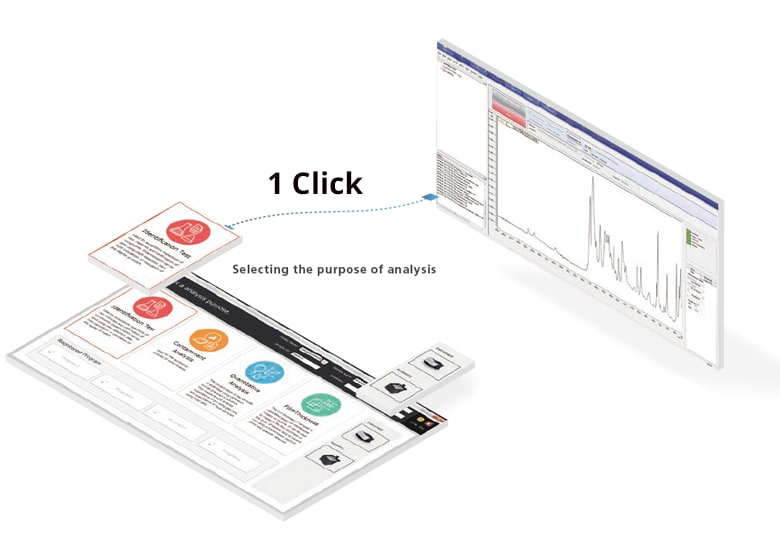

Built-in IR Pilot analytical intelligence feature simplifies operation

  • Intuitive navigation ensures anyone can easily get started

    The IR Pilot™ is an advanced analytical intelligence platform that Includes 23 macro application programs to simply analysis. To get started, simply choose the type of analysis and the attachment. The program will then analyze your sample and generate a report. You can use the program to analyze multiple samples at once, saving time during testing.

    When testing for contaminants, you do not need to specify the mixture’s components. Instead, IR Pilot will identify the components using a spectral library. This feature enables new users to easily analyze contaminants and collect accurate data.

    Learn more about the IR Pilot Identification Test Program

  • Built-in IR Pilot analytical intelligence feature simplifies operation
Return to Top ^

Microscope accessories support many applications

  • Microscope accessories support many applications

  • AIRsight microscope enhances molecular analysis

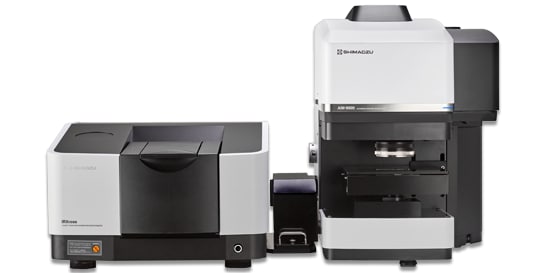

    With the AIRsight infrared Raman microscope, you can double your molecular analysis capabilities. This instrument can measure both infrared and Raman spectra from one position. As a result, There is no need to move the sample during your analysis.

    The AIRsight also has powerful 532 nm and 785 nm lasers that can analyze fluorescent samples. This versatility makes the AIRsight microscope suitable for many different applications.

Return to Top ^

Complies with data integrity and pharmacopoeia requirements

  • Resist humidity and ensure the reliability of data

    You can select either a KBr or KRS-5 window for your IRXross. The KRS-5 window maintains humidity resistance up to 90 %RH (for temperatures up to 30 °C) and is compliant with pharmacopoeia wavenumber range requirements (350 to 7,800 cm-1).

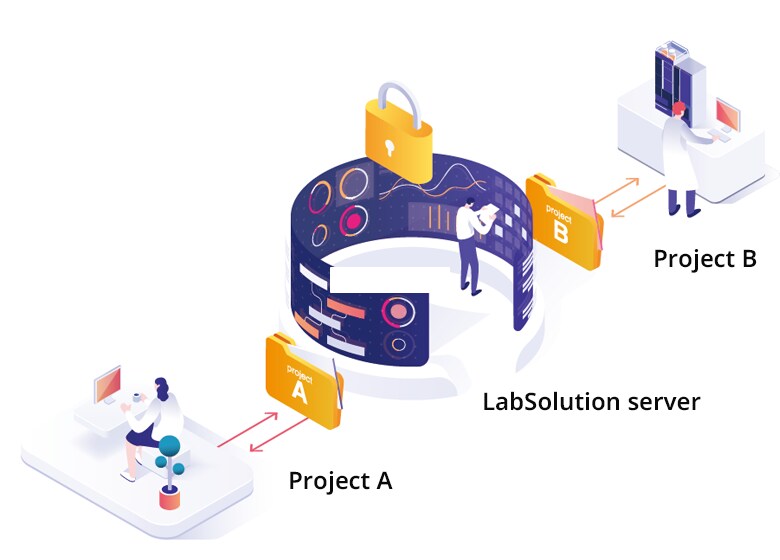

    LabSolutions™ DB IR and CS IR software also complies with electronic records and electronic signatures (ER/ES) requirements. LabSolutions DB IR is configured with a PC, improving security for facilities that do not require network connections. LabSolutions CS stores data on a server, which can be read by personal computers on the network. This software is a good choice for facilities with large databases that Need to be ER/ES compliant.

  • Complies with data integrity and pharmacopoeia requirements
Return to Top ^

Featured Content

Return to Top ^

Videos

  • IR Pilot Identification Test Program

    • Molecular Spectroscopy

    This program makes pass/fail judgments for test samples based on verification methods described in Pharmacopoeia and standards specified in each country, such as "Infrared Spectrophotometry" in the Japanese Pharmacopoeia and Japan's Specifications and Standards for Food Additives. In addition to identification tests for pharmaceutical and food product identification tests, the program can also be used for acceptance and pre-shipment inspections. The program calculates the difference between peak wavenumbers from standard and test samples and the difference between the peak intensity ratios and then prints a report of pass/fail judgment results. It includes spectra for the 57 substances specified in Japan's Specifications and Standards for Food Additives.

  • IRXross

    • FTIR Spectrometers

    The IRXross offers the high performance and easy operation that meets the demands of the pharmaceutical and chemical industries. IRXross provides an S/N ratio of 55,000:1, the highest in its class. It is also compliant with data integrity regulations required in the pharmaceutical field. On top of that, this model comes with the IR Pilot analysis support program, and as a result, accurate measurement results can be easily obtained even by users without extensive analysis experience.

  • AIM for Excellence in Forensic Science

    • FTIR Spectrometers

    FTIR analysis is one of the most universal and well-established techniques used in forensic science. This video describes how Shimadzu’s FTIR instruments provide the most accurate, sensitive, and selective results for your forensic analysis. Whether you have limited lab space, or need the added benefits of a microscope, we have a solution for you.

  • One minute in Shimadzu

    What can we do in one minute? You may feel like one minute is too short for anything to really happen. In this short video, we will introduce how Shimadzu's analytical instruments can perform high-speed analysis and bring value to our customers in one minute.

  • Overview and Introduction of the Workhorse IRXross FTIR Spectrometer

    This video introduces the IRXross, mid-IR spectrometer with a range of options to fit the needs for most laboratories. You'll learn about the key features of this instrument and get a quick overview of LabSolutions IR software, which enables easy compliance with USP, EP, JP and ChP regulations.
