UV-1900 UV-VIS Spectrophotometer
UV-1900i UV-Vis Spectrometer
UV-Vis Spectrometer
UV-Vis powerhouse that easily handles both standard testing and research analysis
The UV-1900i UV-Vis spectrophotometer analyzes and verifies materials in many R&D, quality control and research applications

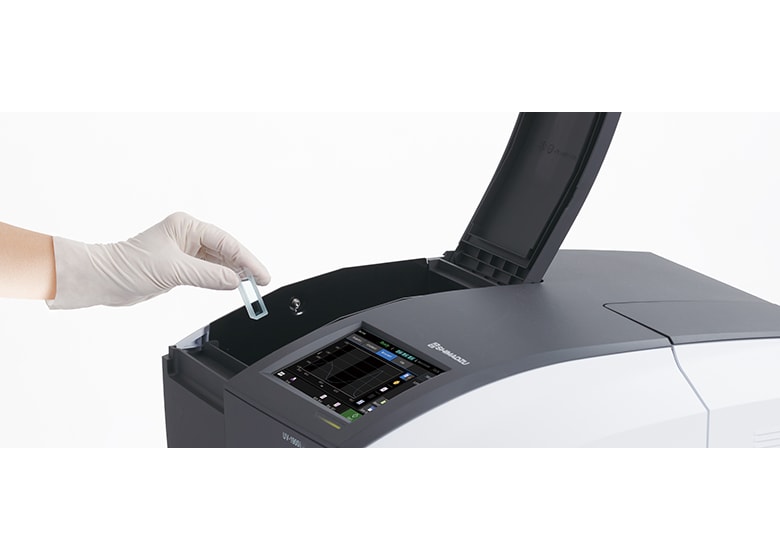

The UV-1900i double-beam spectrophotometer is a flexible instrument that you can operate as a standalone unit using the touch panel or with a PC combined with the included LabSolutions™ UV-Vis software. This technology simplifies data acquisition, analysis, and project supervision.
The UV-1900i system can also pair with Shimadzu’s software compliance package to provide total data integrity, user administration and audit trails to full compliance with FDA 21 CFR Part 11.
Key Features
- Spectrum, quantitation, photometric, and time course measurement modes
- High performance and Ultra-fast scan to meet diverse needs
- Low stray light to make accurate measurements at high absorbance readings
- High reproducibility and repeatability accuracy
- Full Support for Pharmacopeia, GLP/GMP, FDA 21 CFR Part 11 and Other Regulations

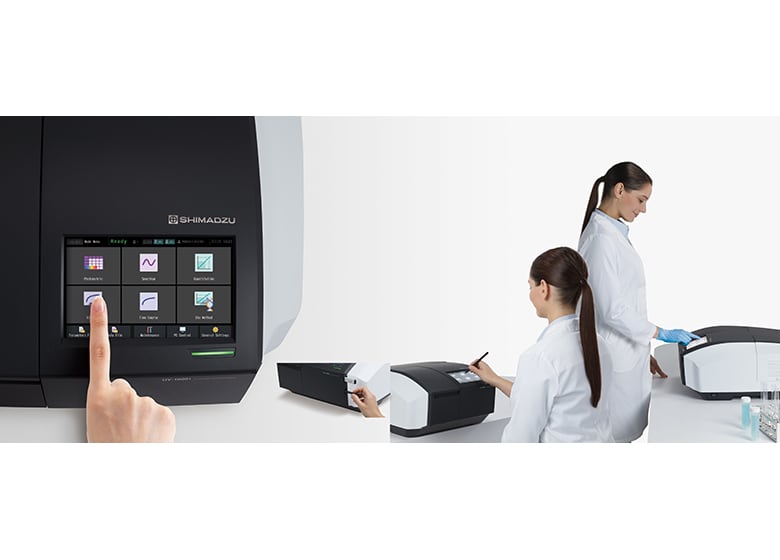

- Easy-to-use touch screen interface
Quick Specs
Wavelength Range | 190-1100 nm |
---|---|
Maximum Abs | 4 Abs |
Scan Speed | Up to 29,000 nm/sec |
Compatible Accessories | Multi-cell, temperature control, autosampler, thin films, Thermal Melt and more. |
PC Requirement | Can be operated standalone or with PC |
Pharmaceuticals and life sciences analysis
-
Strong performance for diverse scientific research applications
Busy pharmaceutical and life sciences laboratories demand instruments that are precise, durable and efficient. The UV-1900i system is the optimal choice for routine pharmaceutical, biopharmaceutical and life science analyses, quality assurance and R&D. Applications include DNA and protein quantitation, dissolution testing and thermal melt analysis of biomolecules.
For example, you can use the UV-1900i UV-Vis spectrophotometer for nucleic acid quantitation. Trace quantities down to 0.7 μL can be measured using a TrayCell® or Nano Stick. Using TrayCell, a calibration curve for 4 μL of λDNA was obtained in the range between 25 ng/μL and 500 ng/μL. Bio methods come standard on the front panel to quickly run routine tests without the need of a PC.
-
Food and beverage analysis
-
-
Fast, reliable analysis of ingredients and contaminants
Food and beverage quality and safety are paramount concerns and UV-Vis spectroscopy is an important way to help ensure that products meet quality standards and are safe for consumption. The UV-1900i system is used to analyze food and beverages for adulteration, additives and preservatives, heavy metals, plastic and microplastic packaging materials, color and unknown contaminants.
Here is an example of food dye analysis. You can use the ultra-fast scan mode to shorten the time needed for routine spectral checks. The 350 nm to 900 nm region can be measured at 1 nm intervals in approximately four seconds.
Beer Analyzer is optional software for the UV-1900i that allows for brewers to easily analyze the color, polyphenols, alcohol content and bitterness. Based on ASBC Standard Methods.
Chemistry analysis of materials
-
High-throughput for analyzing the chemistry of diverse materials samples
The UV-1900i UV-Vis spectrophotometer is a fundamental instrument used in chemistry for analyzing the absorption and transmission of light by chemical substances. It is widely used in quantitative analysis to determine the concentration of a substance in a solution, qualitative analysis to identify unknown compounds or determine the presence of specific functional groups, reaction monitoring and the characterization of chemical substances and reactions.
Here is an example of colored cellophane tape analysis. You can quantitatively confirm materials using LabSolutions UV-Vis and color measurement software.
-
Featured Content
-
UV-1900i Brochure
-
Color Measurement of Solutions with the UV-1900 Spectrophotometer: Differentiating the Colors of Japanese White Dashi Soup Bases
-
Pass/Fail Judgment of Colored Film Using the Spectral Evaluation Function of LabSolutions™ UV-Vis Software
-
Measurement of Time-dependent Change of Metal Nanoparticles – Application of Ultrafast Scanning Speed of UV-1900
Videos
-
-
Labsolutions UV-Vis Spectrum Mode Tips
Understanding the nuances of software settings is crucial for optimizing your UV-Vis spectrophotometry applications. In this comprehensive guide, we delve into key settings for the UV-1900i, UV-2600i/UV-2700i, UV-3600i Plus, and SolidSpec-3700, helping you make informed choices for your spectrum mode experiments.
-
How To Change Lamps in a Shimadzu UV-VIS Instrument
This video demonstrates how to change the lamps in a Shimadzu UV-VIS Spectrophotometer.
-

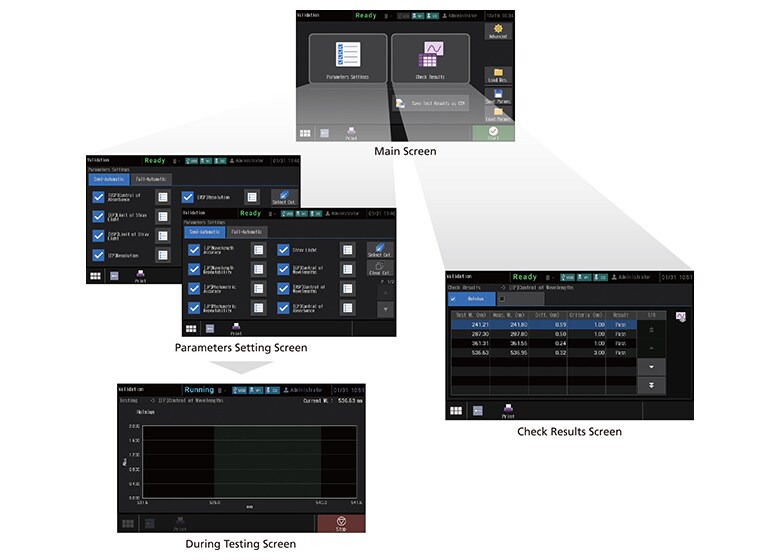

UV-1900 Validation Functions
-
How to Measure Melting Temperature using the Shimadzu TM Analysis System
Shimadzu’s new Tm Analysis system comprises of the UV-Vis spectrometer, the TMSPC8i temperature-controlled cell holder, and the LabSolutions UV-Vis Tm Analysis software. Determination of melting temperature for your biomolecules can be achieved with great flexibility and efficiency. Annealing, blank correction, temperature reverse, spectrum acquisition of samples can be finished within the Tm Analysis software. The new sealing method on the TMSPC-8i hardware almost get rid of sample evaporation near boiling temperature. Optional LabSolutions DB/CS software enables compliance with ER/ES-related regulatory requirements. Overall, this is an amazing tool for your oligonucleotide/peptide therapeutic research.
-
UV-1900 Ultra-Fast Scan
-
One minute in Shimadzu
What can we do in one minute? You may feel like one minute is too short for anything to really happen. In this short video, we will introduce how Shimadzu's analytical instruments can perform high-speed analysis and bring value to our customers in one minute.
-
UV-1900 Photometric Mode
-
UV-1900i UV-VIS Spectrophotometer
-
How to Use the Autosampler for Sample Quantitation on a UV-Vis Spectrophotometer
This video will go through the steps - from placing the samples and setting up a parameter file to starting the experiment - when using an autosampler for sample quantitation.
-
How to Use the Autosampler for Sample Quantitation on a UV-Vis Spectrophotometer
This video will go through the steps - from placing the samples and setting up a parameter file to starting the experiment - when using an autosampler for sample quantitation.
