Benchtop Microfocus X-Ray CT System
The XSeeker 8000 is a benchtop X-ray computed tomography (CT) system, featuring a high-powered 160 kV X-ray source, precision stage, and high-resolution detector. A CT scan can be initiated by selecting a set of pre-programmed scan conditions and simply pressing the start button without compromising technical sophistication. A data acquisition can be completed in as little as 12 seconds. The XSeeker 8000 empowers users to conduct meticulous inspections of internal structures, identify defects, and uphold the quality standards of resin and aluminum die-cast components.
| X-Ray Generator Output |
160 kV 1.2 mA |
|---|---|
| Max. Sample Size/Weight |
φ11.8"×H 12.6",22 lbs (Including sample setting jig) |
| Max. System Resolution Capability |
100 µm |
| CT Data Acquisition Time |
12 sec or 5 minutes |
| System Rated Output |
Single phase 100 to 240 V AC ± 10 %, 50/60 Hz, 1.0 kVA |

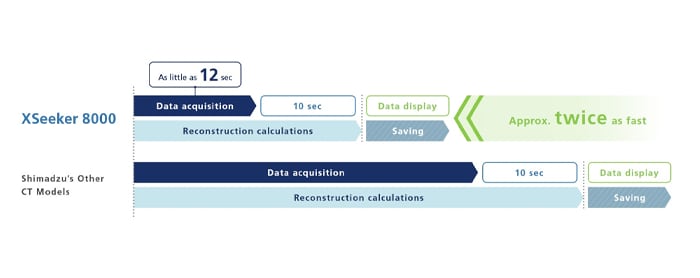

The XSeeker 8000 provides a fast scan speed of 12 seconds. The system is equipped with the same reconstruction system as high-end models, so it can display CT data in as little as 10 seconds after scanning is complete. It operates at twice the speed as other Shimadzu CT models, enabling quick inspections.
The scanner also contains a high-output X-ray generator that can penetrate thick objects, including plastic, resin and metal parts. It has an X-ray output of 160 kilovolts (kV), enabling it to provide clear, sharp images.

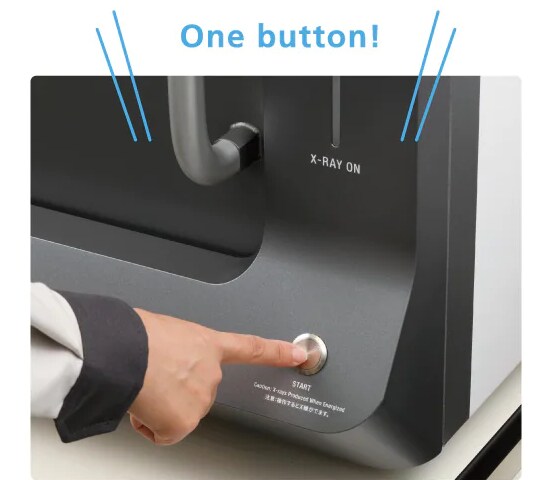

The XSeeker 8000 features an intuitive design that is easy for anyone to operate. To get started, simply position your sample and press the start button. The system will automatically set the observation conditions, including the position and level of contrast. This feature improves throughput during inspections, as you do not need to reset the observation conditions after each scan. Instead, you can view your sample immediately, saving time.

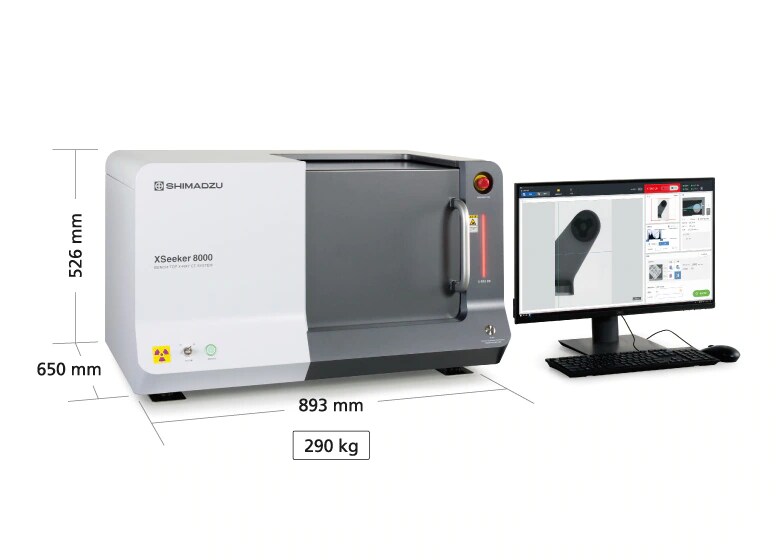

The XSeeker is the smallest and lightest benchtop CT scanner in its X-ray power output category. It is ideal for small laboratory workspaces. The system also meets the minimum standards for loading into a passenger elevator, enabling easy transportation. Despite its compact frame, the XSeeker 8000 can hold samples with a diameter of up to 11.8 inches and a height of 12.6 inches. You can certainly save on lab space and a special power supply is not required.
Xseeker 8000: Software Overview and Features

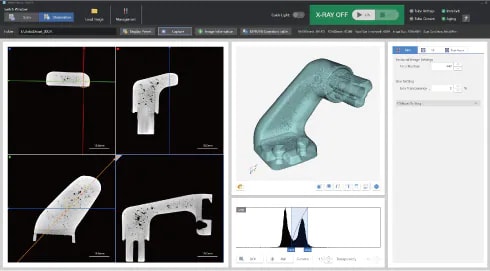

Shimadzu’s XSeeker 8000 benchtop X-ray CT scanner can acquire images in as little as 12 seconds. This video provides a tour of the instrument control and image processing software that comes standard with the instrument.
Powerful X-ray CT scanning of some of your favorite treats
Can you guess what is in your chocolate? We scanned a few of our favorite candies on our X-ray CT scanner to see what makes them so tasty.
