GCMS-TQ8050 NX Triple Quadrupole GC-MS

Triple Quadrupole Gas Chromatograph Mass Spectrometer

Add Bookmark

Maximize Analysis Precision with GCMS-TQ8050 NX
Request More Information

Perform Exceptional Quantitative Analysis of Ultra-Trace Amounts

Ultra-high sensitivity, long-term stability and reduced noise levels provide reliable trace analysis results

The GCMS-TQ8050 NX gas chromatograph mass spectrometer features cutting-edge technology including an advanced high-sensitivity detector and three noise-reduction mechanisms, enabling unparalleled quantitative analysis of ultra-trace concentrations.

This system surpasses single quadrupole GCMS instruments in accurately identifying contaminants in food, environmental, chemical, pharmaceutical and other complex trace samples. With Shimadzu technologies like Smart MRM, Smart Database and LabSolutions Insight software at your fingertips, you can easily develop methods, review data and report results.

Key Features

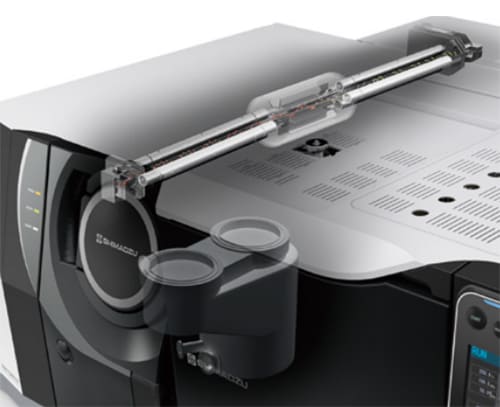

Key Features of the GCMS-TQ8050 NX Triple Quadrupole GCMS-TQ8050 NX
  • Detection of ultra-trace ions with high sensitivity
  • Advanced noise-reduction technologies
  • Smart MRM user-friendly method development technology
  • Smart Database and LabSolutions Insight software to accurately process results
  • Simplified maintenance including easy-to-clean ion source
  • Durable hardware including detector with contaminant-resistant ion source
  • Ideal for food, environmental, chemical, forensics and pharmaceutical applications
  • Expert support with advanced knowledge in all application areas

Quick Specs

Dimensions (WxDxH) (43 cm x 83 cm x 40 cm)
IDL Sensitivity EI source – 2 fg OFN injection : IDL ≤ 0.5fg BEIS source – 2 fg OFN injection : IDL ≤ 0.3fg
Ion Source Standard EI BEIS (Boosted Efficiency Ion Source) NCI/PCI
MRM Speed 800 MRM transitions/second
Minimum MRM Dwell Time < 0.5 msec
Scan Sensitivity 1 pg OFN injected: S?N ≥2000
Scan Speed 20000 u/second
Mass Range m/z 10 to 1090
Software Platform LabSolutions GCMS/ GCMSsolution Labsolutions Insight



Delivers high-sensitivity performance with greater noise reduction

  • The GCMS-TQ8050 NX system reduces noise without compromising sensitivity

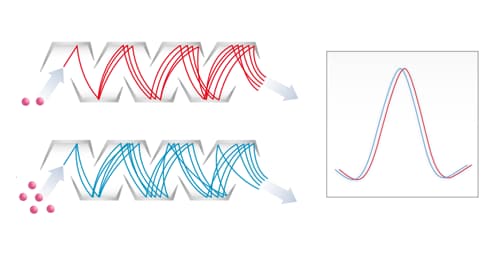

    The signal-to-noise ratio is often used to measure the sensitivity of a GC/MS instrument, and it is important to increase signal intensity and decrease noise for high sensitivity analysis. Featuring OFF-AXIS Ion Optics, the GCMS-TQ8050 NX system removes noise without sacrificing sensitivity. A shield in the secondary electron multiplier reduces noise from outside the detector. In addition, two overdrive lenses in front of the electron multiplier decrease random noise from helium or argon and improve signal-to-noise ratio.

  • GCMS-TQ8050 NX Delivers high-sensitivity performance with greater noise reduction
Return to Top ^

User-friendly triple quad operation with smart method development tools

  • User-friendly triple quad operation with smart method development tools

  • Quickly and accurately review data and report analysis results

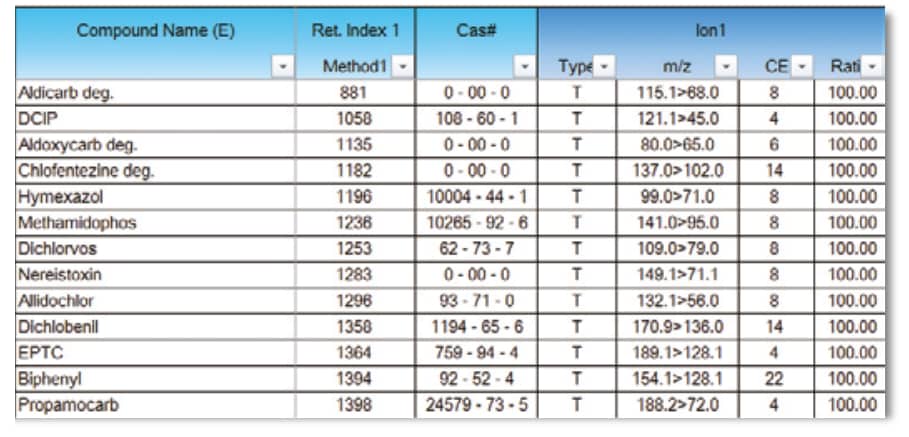

    The GCMS-TQ8050 NX system incorporates user-friendly technologies that help you to perform triple quad analysis with confidence and ease. The Smart MRM (multiple-reaction monitoring) tool assists users in creating methods for ultra-trace analysis and ensures high sensitivity by automatically determining all optimum transitions and collision energies. It seamlessly integrates methods into the Smart Database, which logs compound information, records transitions and registers a retention index. LabSolutions Insight software improves data analysis and provides multi-analyte data and status review and color-coded quantitative flags.

Return to Top ^

Simplified maintenance to reduce downtime and operational costs

  • Decreased maintenance frequency and extended service life add value

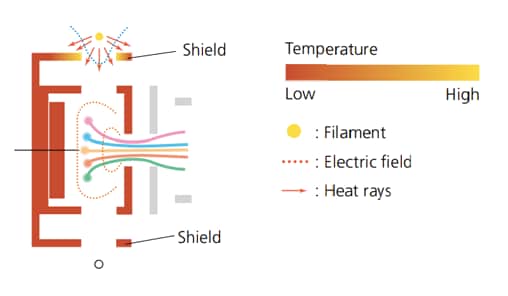

    The GCMS-TQ8050 NX system is equipped with a contaminant resistant ion source that is easy to clean and designed for extended service life, ensuring reliable analysis for many years. Minimizing detector loads during analysis substantially prolongs the detector’s lifespan, reducing the need for frequent maintenance and maximizing uptime. Thanks to the system’s ultra-high-sensitivity performance, you can significantly reduce injection volumes, which extends the service life of inserts, columns and other consumables to reduce maintenance frequency and costs.

  • Simplified GCMS maintenance to reduce downtime and operational costs
Return to Top ^
