Micro Sample Measurement

Add Bookmark

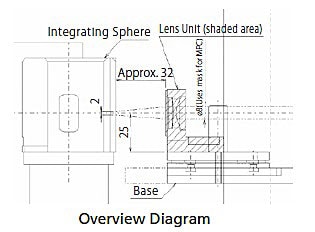

Micro Beam Lens Unit

This unit uses a lens and mask to mask the beam that passes through the integrating sphere opening. The minimum beam diameter is about 1 mm. It requires a sample base plate integrating sphere unit at the same time.

Note: For UV-2600 series, MPC-2600A and BIS-3100 sample base plate integrating sphere set is separately required.
For UV-3600Plus series, MPC-603A and BIS-603 sample base plate integrating sphere set is separately required.
For SolidSpec series, BIS-3700/3700DUV is separately required.

Micro Sample Holder

This holds solid samples about 5 to 10 mm square or in diameter and about 1 to 5 mm thick. Samples are held by clamping from above and below.
