TOC-L Series Total Organic Carbon Analyzer
Request More Information TOC-L Analyzer Configurator

Easily analyze all types of organic compounds with the global standard for TOC analyzers

Successfully measure TOC – even in hard-to-decompose samples or high-sensitivity applications

More than 40 years ago, Shimadzu developed the 680 °C combustion catalytic oxidation method for TOC analysis, setting the global standard for accuracy and reliability. The TOC-L series uses this technology to oxidize both easily decomposable and hard-to-decompose organic compounds.

Available as standalone or PC-controlled models, the high-sensitivity unit is ideal for pure water analysis, while the standard model focuses on cost-efficiency when high sensitivity measurement is not required.

Optional enhancements include simultaneous TOC and total nitrogen measurement, gas and solid sample analysis, and more. LabSolutions™ TOC software simplifies the entire analytical process.

Key Features

Key Features of the TOC-L Series Total Organic Carbon Analyzer
  • Automated and easy TOC analysis to replace BOD/COD measurements
  • Extremely wide measurement range
  • Reliable sample injection system
  • Four models to suit a variety of applications
  • Suitable for aqueous, gas, solid, high suspended solid, high salt, and small volume samples
  • Total nitrogen analyzed simultaneously with TOC to replace labor-intensive TKN measurement

Quick Specs

  High-Sensitivity Model Standard Model
Model TOC-LCPH/CSH TOC-LCPN/CSN
Measured Items TC, IC, TOC (= TC-IC), NPOC
Option: POC, TOC (= NPOC + POC), TN
Measurement Range TC: 0 to 30,000_mg/L
IC: 0 to 35,000_mg/L
TN: 0 to 10,000_mg/L		 TC: 0 to 30,000_mg/L
IC: 0 to 3,000_mg/L
TN: 0 to 10,000_mg/L
Detection Limit TC, IC: 4 μg/L, TN: 5 μg/L TC: 50 μg/L, IC: 4 μg/L, TN: 20 μg/L
Measuring Time Approx. 3 min for TC
Auto Sample Dilution Dilution rate: 2x to 50x Dilution accuracy: ±2% max. (2x to 20x), ±5% max. (21x to 50x)
Methods
  • EPA 415.1, 415.3 & 9060A
  • SM 5310B & 4500-N E
  • ISO 8245 & 20236
  • ASTM D7573 & D8083
  • USP <643>
  • EP 2.2.44
  • EN 1484
  • JIS K-0102 & K-0551

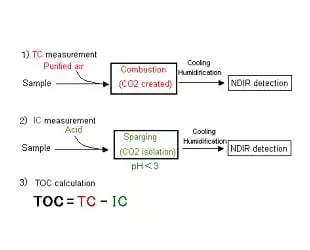

High-temperature combustion catalytic oxidation method

  • No need for preparation and disposal of oxidizing agents

    The TOC-L analyzer is powered by Shimadzu’s 680 °C combustion catalytic oxidation method, which can effectively oxidize even challenging organic compounds like insoluble and macromolecular samples. This technology supports an extensive measurement range from 4 μg/L to 30,000 mg/L, suitable for analyzing everything from ultrapure to highly contaminated water.

    The automatic dilution function reduces sample salinity, acidity and alkalinity, significantly extending the lifespan of catalysts and combustion tubes.

  • High-temperature combustion catalytic oxidation method
Return to Top ^

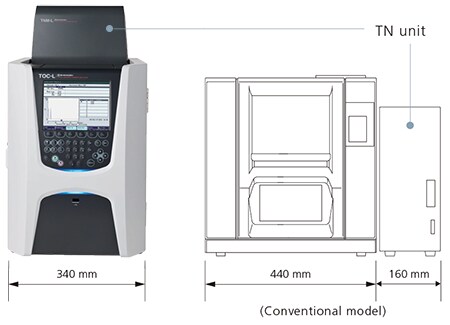

Versatile models and options serve a variety of TOC analysis applications

  • Versatile models and options serve a variety of TOC analysis applications

  • Broaden your analytical capabilities with customizable enhancements

    In addition to four base models to choose from, you can expand your analytic reach with optional enhancements. These additional functions enable users to measure TOC and total nitrogen simultaneously, use low-purity compressed air, analyze gas, solid, and high suspended solids samples, perform saltwater analysis and measure small volume samples.

    Applications span process and water quality control, equipment and raw materials management, investigations and experimental research, and pharmaceutical water monitoring.

Return to Top ^

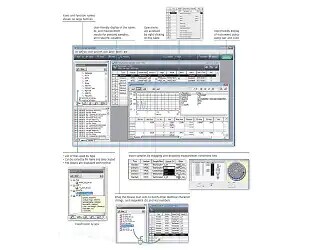

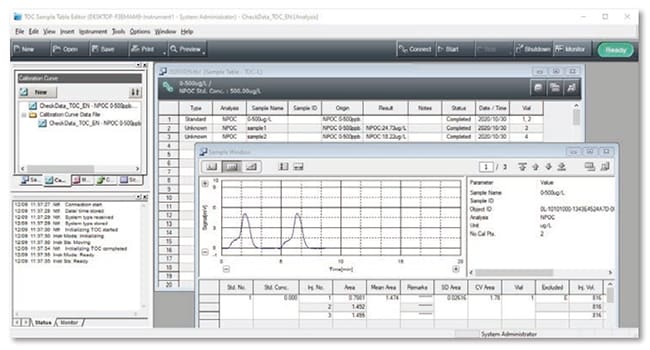

Intuitive LabSolutions™ TOC PC Software supports the total analysis process

  • Perform imaging workflows quickly and easily with software-guided technology

    LabSolutions™ TOC software is easy to use and has many functions to simplify the analytical process. For example, the software can create a calibration curve out from one stock solution using the auto dilution function and automatically select the appropriate injection volume and dilution factor for samples that exceed the calibration range. Additional samples can be entered into the analysis sequence mid-run and measured ‘on the fly’.

    Users can also set automatic start-up and shut-down parameters for more efficient operation. And this software streamlines routine measurements, display real-time detector output, and provides customizable sample reports.

  • Perform imaging workflows quickly and easily with software-guided technology
Return to Top ^

Featured Content

Return to Top ^

Videos

  • Total Organic Carbon and Total Nitrogen: New Solutions for Old Contaminants

    Join us and our partners as we co-host a webinar presenting the latest news about TOC and TN analysis in environmental samples and learn how to:

    Increase productivity with a combination of robust hardware and Shimadzu’s all new LabSolutions TOC Software.

    Expand analysis capabilities for difficult matrices including samples with high suspended solids, or high salt and halogens concentrations.

    Replace traditional Total Kjeldahl Nitrogen (TKN) measurement with a safer, faster, and more accurate instrumental analysis.
    We will host a Q&A session after the presentation to address any questions or comments.

  • How To Troubleshoot a High Baseline Error in a Shimadzu TOC L Instrument

    • Total Organic Carbon Analysis

    Shimadzu is a world leader in TOC instrumentation. In this video, we will demonstrate how to correct for a high baseline error on TOC LC combustion instruments.

  • How To Troubleshoot for Poor Reproducibility in a Shimadzu TOC-L Instrument

    • Total Organic Carbon Analysis

    Shimadzu is the world leader in TOC-L instrumentation. In this video, we'll show you how to resolve poor reproducibility for replicate injections of standards or samples using the Shimadzu TOC-L instrument.

  • How to Replace the Combustion Tube and O-Rings on a TOC-LC Instrument

  • How to Replace the Syringe Plunger Tip and 8 Port Valve Rotor on the TOC L

    • TOC Analysis

    In this video, we'll show you how to replace the syringe plunger tip and 8-port valve rotor on the Shimadzu TOC-L combustion instrument.

  • TOC-L Analysis flow

    • Total Organic Carbon Analysis
