SALD-2300

Laser Diffraction Particle Size Analyzer

Particle Size Distribution Measurement of Lithium-Ion Battery Materials

$SALD-2300 Laser Diffraction Particle Size Analyzer$

The new standard in the SALD series. While maintaining continuity and compatibility with respect to the data of the SALD2000/2100/2200, which were popular, widely distributed models, this instrument is equipped with many new functions useful for evaluating changes (dispersion, aggregation, dissolution) in particle size distribution relative to the concentration or time. It supports a particle concentration range from 0.1 ppm to 20% and can perform a series of measurements of 200 data points at 1 second minimum intervals.

Features

Wide applicability

Using the SALD-MS23 sampler, the measurement range is 17nm to 2500μm for wet measurement.

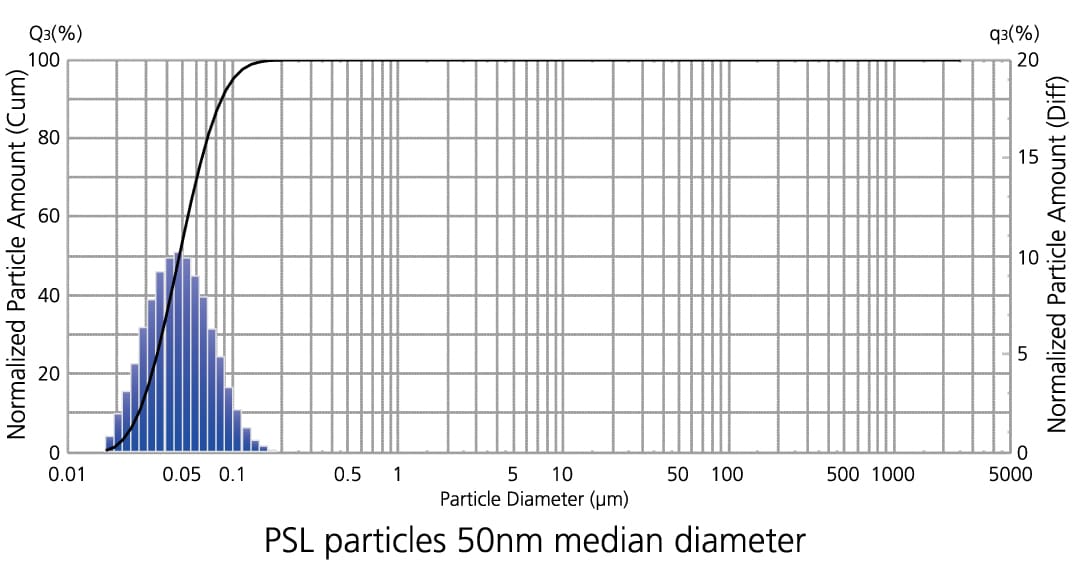

For example, PSL particles with a median diameter of 50nm and stainless balls with a diameter of 2mm can be measured by a single analyzer...
High sensitivity / High concentration

By enabling measurement under wide particle concentration conditions (0.1ppm to 20%), changes in particle size distribution depending on particle concentration can be evaluated...
Providing Secure, Confident Data Management on a Network System

The SALD-2300 laser diffraction particle size analyzer is now compatible with data integrity requirements. Connecting LabSolutions SALD to the LabSolutions system, with its proven compatibility with ER/ES regulations, enables confident, reliable data management.

Learn more

Videos

How to Perform Laser Alignment on the Shimadzu SALD-2300 and SALD-7500 Particle Size Analyzer

Particle Size Analyzer

This videos shows you how to perform a fine laser adjustment on a Shimadzu SALD-2300 or SALD-7500 particle size analyzer
SALD-2300 High- Concentration Cell Unit

Particle Size Analysis
SALD-2300 Converting Wet system to Dry system

Particle Size Analysis
SALD-2300 Batch Cell Unit

Particle Size Analysis
SALD-2300 Cyclone Injection Type Dry Measurement Unit SALD-DS5

Particle Size Analysis
SALD-2300 Flow Cell Unit

Particle Size Analysis
SALD-2300 Laser Diffraction Particle Size Analyzer

Particle Size Analysis

Show Less
