inspeXio SMX-225CT FPD HR Plus - Features

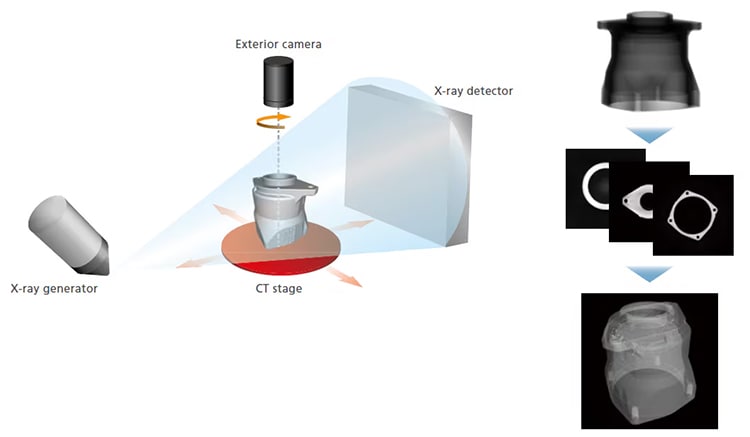

An observation camera guides sample loading and positioning, and parameter setting is completed quickly by choosing the material and image quality. With no need for calibration, the system is initialized quickly and intuitively.

The inspeXio SMX-225CT FPD HR Plus' high-performance computing (HPC) system significantly reduces analysis time by running data collection and calculation in parallel. The computational processing for this new HPC inspeXio system is approximately 50 times faster than the previous version. *1

*1 When the Acquisition Mode is Fast and the CT image size is 1,024 x 1,024 pixels

The processing time for the Cone-Beam CT reconstruction in 2,048 x 2,048 pixels is approximately 1.5 times faster than that of the previous version. *2

*2 When the Acquisition Mode is Fine, the Number of Views is 1,200, and the CT image size is 2,048 x 2,048 pixels.

The large and high-resolution flat panel detector achieves up to 14-megapixel input resolution. The acquired projection data can be composed of up to 4,096 matrix sizes.

The inspeXio SMX-225CT FPD HR Plus can analyze a wide variety of samples. Large samples up to 400 mm in diameter with a maximum height of 300 mm can be accommodated and, due to the 225 kV maximum penetration ability, even iron plates that are one-inch thick are penetrated. In addition, the combination of a larger detector with a wide dynamic range and a newly designed x-ray tube window results in high-contrast images of low-density materials. Furthermore, various CT scan modes aid in analysis of different-sized samples without damaging or losing magnification.

inspeXio SMX-225CT FPD HR Plus Software

The user-friendly inspeXio SMX-225CT FPD HR Plus software offers fast data processing and detailed post-analysis functions.

HPC inspeXio Version 3.0

Easy-to-use with live images to assist sample positioning and fast data processing, the HPC inspeXio software drastically increases productivity.

Capture Window

• Zoom in/out of live x-ray images and alter the position of points of interest.
• Automatically optimize the display contrast and brightness based on a sample’s material.

X-Ray Controller and Safety Indicators

• Control x-ray output and perform tube aging.
• The safety status of the instrument is monitored, including door interlocks.

CT Stage Live View of the Sample

• Shows the scan area of the sample.
• Includes an automatic x-ray optimization function and a field-of-view navigation setting.

Parameter Recommendation

• In addition to the advanced parameter settings, nine pre-set scan parameters incorporate a combination of material density and CT image quality settings, obviating the need to set each parameter individually.

Fast Reconstruction

• Due to large data sets, CT image processing is often slow. The inspeXio SMX-225CT FPD HR Plus system boasts a high-performance computing system which runs calculations in parallel with data collection, significantly reducing analysis time.

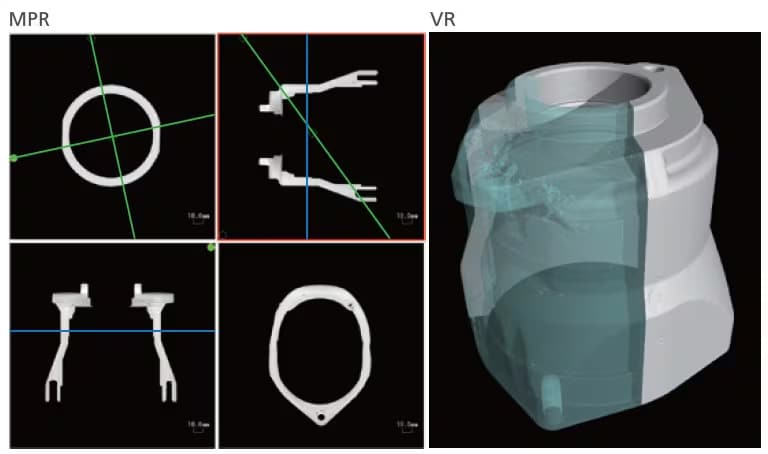

Multi Planar Reconstruction Software

Instant Access to Your CT Images

Shimadzu’s Multi Planar Reconstruction software reformats CT images at arbitrary planes. A CT volume dataset is built by stacking Z-axial slices. The software cuts slices through the volume in mutually orthogonal planes and allows reconstruction in  non-orthogonal planes, enabling examination of samples side to side, straight up and down, and at any angles.

3D CT Scan Region Display Function

Immediately after acquiring a whole view of your sample, the 3D CT Scan Region Display function allows the user to set a new area of interest at a higher magnification based on the current field of view. The mobile CT stage is manipulated through the Multi Planar Reconstruction software. It allows the user to intuitively alter the scan area for a detailed inspection.

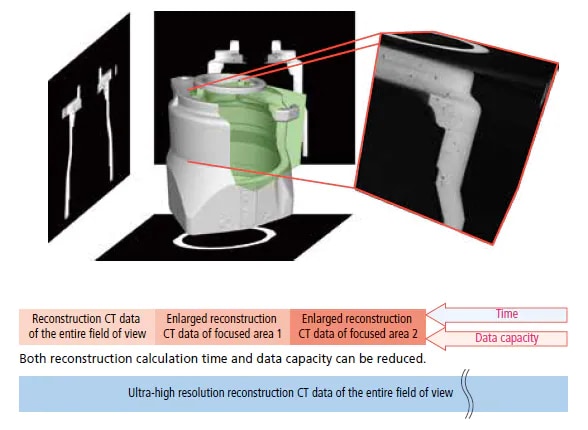

Advanced 3D Image Reconstruction

The user can intuitively crop and enlarge any area of interest without rescanning the sample. The high-resolution detector allows acquiring enlarged cross-sectional images with clear definition, even if analyzing a large sample that cannot be scanned at a high geometric magnification.

The following safety features prevent accidents.

Collision Sensor and Software Limit
A collision sensor and software limit function prevent samples from hitting the x-ray tube while positioning.

Anti-Pinch Prevention
The sliding door through which samples are loaded is heavy and generates considerable inertia when it is opened and closed. The door safety lock helps reduce the likelihood of operators accidentally pinching their fingers.

Door Interlock
Both the sliding door and the maintenance doors are equipped with interlock switches which disable x-ray generation when a door is opened.

Radiation Leakage Prevention
The shield box’s wall is composed of sandwich panels comprised of steel and lead plates which are bonded to one another and welded to a steel frame.
