High-Speed Tensile Test Measurement Data

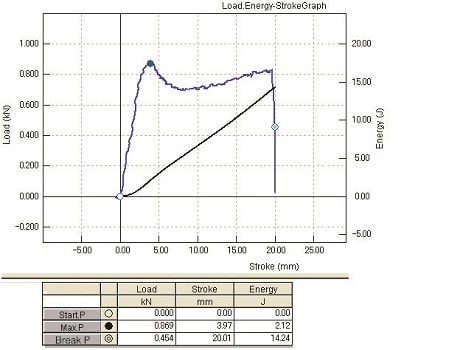

Data example for plastics

Material : Polycarbonate
Flat plate : 5 mm wide x 2 mm thick
Tensile rate : 20 m/s

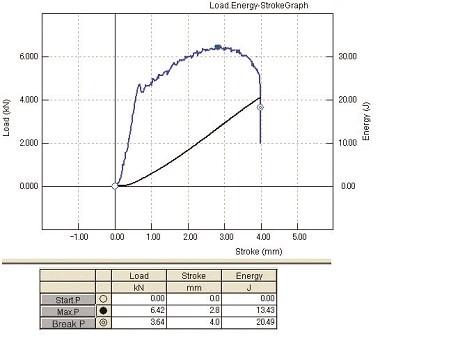

Data example for aluminum

Round rod : 5 mm radius
Tensile rate : 5 m/s

Puncture Impact Measurement Data

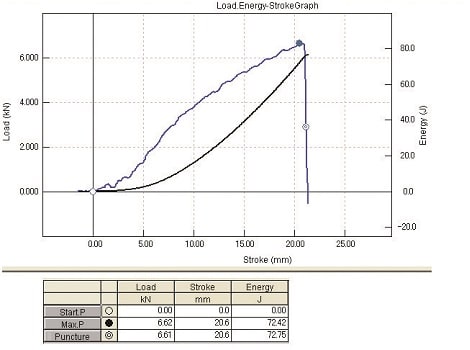

Data example for plastics

Material : Polycarbonate (t = 2 mm)
Speed : 10 m/s

Data example for aluminum

Material : Aluminum (t = 0.75 mm)
Speed : 20 m/s
