Prominence IC Anion Suppressor Ion Chromatograph
Request More Information

A new era of electrolytic suppression in an easy-to-use ion chromatograph

High sensitivity and reliability for suppressed ion chromatography

The Prominence IC leverages the precision of Shimadzu’s HPLC instruments and ensures clean separations, highly repeatable injections and reliable analyses.

The built-in ICDS-40A electrodialytic anion suppressor achieves high sensitivity – exceeding sensitivity requirements for EPA methods, such as EPA 300 and EPA 300.1 – and provides extremely stable results without chemical regenerants.

And at only 16.5 inches wide, it maximizes bench space and is used in applications including environmental, chemical, pharmaceutical and food science. And, like all of our instruments, comes with access to our expert technical support teams.

Key Features

Key Features of the Prominence Ion Chromatograph
  • ICDS™-40A anion suppressor unit
  • Sensitive, stable detection using two layers of thermal regulation
  • Low noise and minimized internal volume for efficient baseline separation
  • Eluent delivery pump utilizes inert materials and low pulsation eluent flow
  • High-speed injections from 0.1 to 2000 μL with the lowest carryover profile
  • Compact design optimizes bench space

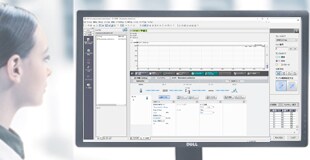

  • Seamless integration with LabSolutions software platform
  • Experienced, accessible technical service

Quick Specs

 Parameter Prominence IC

Maximum Operating Pressure		 20 MPa (2,900 psi)
Solvent Delivery Low pulsation metal-free pump, up to 10 mL/min
Injection Total-volume sample injection with needle-in-flow path design, 0.1 to 100 µL standard, up to 500 µL and 2000 µL optional
Sample Capacity 175 (1 mL vials), 70 (1.5 mL vials), 50 (4 mL vials)
Electrolytic Suppressor Small internal volume, high membrane surface area for cation exchange, use sodium carbonate/sodium hydrogen carbonate solution (no organic solvent) as eluent
Column Oven Forced air circulation, up to 85 ºC, fit 3x 300 mm column or 6x 100 mm column
Conductivity Detector Temperature-controlled flow cell with 25 μS·cm−1 cell constant and 0.25 µL cell volume



Maintenance-free, chemical-free ICDS-40A anion suppressor

  • Minimize drift and noise for increased sensitivity

    The ICDS-40A anion suppressor enables simultaneous analysis and regeneration. Because this novel suppressor uses the detector’s effluent for regeneration, you don’t have to perform the time-consuming offline process using harmful chemicals. This feature also eliminates the need to purchase and dispose of chemicals.

    A unique solution for electrolytic suppression, it includes a folded eluent flow path that doubles the cation exchange surface area in a smaller physical volume. This design delivers thermal stability, reduced peak spreading and increased sensitivity.

  • Maintenance-free, chemical-free ICDS-40A anion suppressor
Return to Top ^

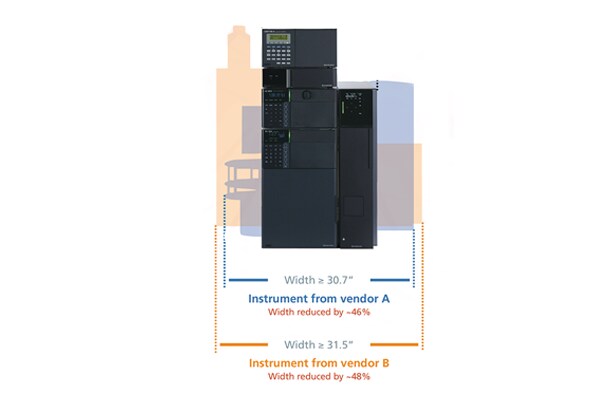

Small footprint to maximize bench space in your lab

Small footprint to maximize bench space in your lab

An efficient, economical design

The Prominence IC is nearly 50% narrower than comparable ion chromatographs on the market. At just 16.5 inches (420 mm) wide it takes up significantly less space on the bench. The narrow width column oven and modular autosampler help to create this unique, compact design. Other space-saving features include the built-in ICDS-40A anion suppressor and stackable autosampler.

This small size gives you more room for other instruments, data stations and workspace.



Return to Top ^

Exceeds sensitivity requirements for EPA methods

  • Supports EPA Methods 300 and 300.1 for environmental analysis

    Widely used in water analysis, Prominence IC is ideal for EPA 300 for common anions and the extended EPA 300.1 Method, which includes inorganic disinfection byproducts.

    Running ion chromatography standard test methods on the Prominence IC provides excellent resolution because there is no interference of the water dip on the early-eluting peaks, and you can extend runs to maximize resolution and injection volume for trace analysis. Also, it enables precise, stable analysis to ensure repeatable results.

  • Supports EPA Methods 300 and 300.1 for environmental analysis
Return to Top ^

Featured Content

Return to Top ^

Videos

  • Shimadzu Prominence Ion Chromatography

  • Reliable Anions Analysis with the Prominence IC

    This video provides an overview and description of the Prominence Ion Chromatograph (IC). The Prominence IC is the alternative to the ICs historically available for ions analysis, built based on the high performance and ruggedness of Shimadzu’s LCs. Watch the video to learn how the Prominence IC and its unique design for highly efficient background suppression and electrolytic regeneration are ready to set a new industry standard for ions analysis in environmental samples and many more.
