Infrared Microscope Maximizes Automation to Improve Microsample Analysis

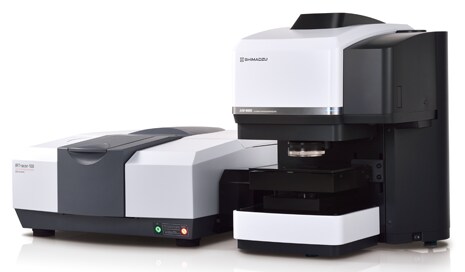

AIMsight Infrared Microscope


The AIMsight Infrared Microscope features automated analysis functions and an enhanced wide field camera to enable users of all experience levels to identify, observe, measure and analyze microsamples quickly and efficiently. The user-friendly AIMsight Infrared Microscope identifies the measurement target with a simple click on the image in the AMsolution control software and sets the optimal measurement position in just one second.

The AIMsight Infrared Microscope is equipped with Shimadzu’s proprietary wide-field camera and an infrared microscope objective. The wide-field camera can observe large areas up to 10mm × 13mm, and the 330× digital zoom function enables observation of areas as small as 30µm × 40µm.

In addition, the instrument provides the highest sensitivity in its class with a signal-to-noise ratio (S/N ratio) of 30,000:1. Operators can quickly acquire high-sensitivity data of micro measurement targets down to 10 µm in size. The system also includes a function to measure the diameter of microplastic particles.



Features

  • Wide-field camera for users of all experience levels
    Observe
    An enhanced wide field camera to enable users of all experience levels to identify, observe, measure and analyze microsamples quickly and efficiently.
  • Measure with Automatic contaminant recognition system, Highest class S/N, and Length measurement function
    Measure
    Automatic contaminant recognition system
    Highest class S/N
    Length measurement function
  • Analyze with Original library of high hit ratios, Contaminant analysis program, and Spectrum advisor function
    Analyze
    Original library of high hit ratios*
    Contaminant analysis program
    Spectrum advisor function
    *Optionally available
Learn more

Videos

  • Official Product Video - Infrared Microscope AIMsight

    • FTIR Spectrometers

    This instrument easily and automatically measures micro targets by irradiating them with infrared rays, and then investigating the reflectance and transmittance. In addition to trace contaminant analysis and quality control in fields such as chemistry, electrical devices and electronics, machinery, and transportation equipment, this instrument will play a role in researching microplastics, tiny plastic particles that have a negative impact on the environment.
