eTOC Series - TOC Analyzer for Pure Water - Specs

TOC-1000e On-Line TOC Analyzer for Pure Water

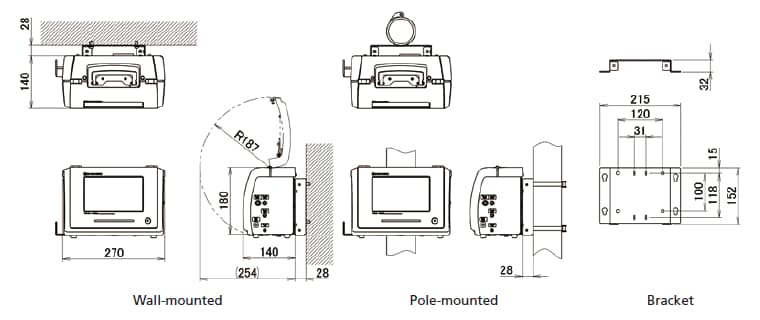

Installation Space

TOC-1000e

TOC-1000e

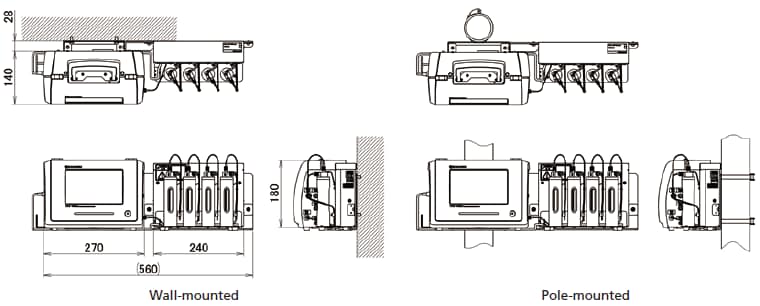

TOC-1000e with Vial Sampler (Optional)

TOC-1000e with Vial Sampler (Optional)

eTOC Series

Specifications*

Model

TOC-1000e

Outputs

USB flash drive, printer, LAN (file or Internet), Modbus (TCP/IP), analog*3, or contact*3

Dimensions

W270 × D140 × H180 mm

Power supply

100 to 240 V AC, 50/60 Hz

Installation Site Requirements

Indoors, with 10 to 40 °C ambient temperatures
Tabletop, wall-mounted*4 or pole-mounted*4

Ingress Protection Rating

IP33

Display

7-inch color touch panel

Contact Input*3

Start measurement

Contact Output*3

Alarm: Measurement value alarm, device alarm, serious failure, or power supply interruption
Event: Ready for measurement, measuring, and analog synchronization signal

Analog Output*3

4 to 20 mA output, three channels from TOC, conductivity, specific resistance, or temperature

Calibration*2

Creates a 4-point calibration curve automatically

Measurement items

TOC, conductivity (or specific resistance), and temperature

Linearity

TOC: R2 ≥ 0.98

Repeatability

TOC: CV ≤ 1 % or SD ≤ 0.3 µg/L, whichever is greater

Accuracy

TOC: ± 5 % (500 µg/L sucrose)
Conductivity: ± 2 % (147 µS/cm at 25 °C)
Temp.: ± 0.5 °C (at 25 °C)

Detection limit

TOC: 0.1 µg/L

Measurement range

TOC: 0 to 2000 µg/L
Conductivity: 0.023 to 206 µS/cm (without temperature correction)
Temp.: 10 to 50 °C

Measurement cycle

2.5 min, 5 min, 10 min, 15 min, 30 min, 1 hr, 2 hrs, 4 hrs, 12 hrs, or 24 hrs

Sample Water Conditions

Temp.: 10 to 50 °C
Flowrate: 30 to 500 mL/min
Conductivity: 2 µS/cm or lower

Measurement principle

UV oxidation-conductivity method

Weight

Approx. 2.88 kg

*1: The specification above is available when managed and operated appropriately by trained people.
*2: Using an optional vial sampler
*3: Using an optional external I/O kit
*4: Using an optional bracket kit
