SALD-7500nano

Nano Particle Size Analyzer

Delivering 10 times the sensitivity of previous models, this innovative analyzer is capable of continuously measuring changes in particle size and particle size distribution at one-second intervals, within a range spanning 7 nm to 800 μm. In addition, unique options that accommodate the measurement of even high-concentration samples (up to 20 wt%) and trace quantity samples (down to 15 μL) are available. Due to its leading-edge measurement capabilities, the analyzer will likely be used for many applications in new areas, including nanotechnology, the life sciences, and fine bubbles (microscopic bubbles).

Features

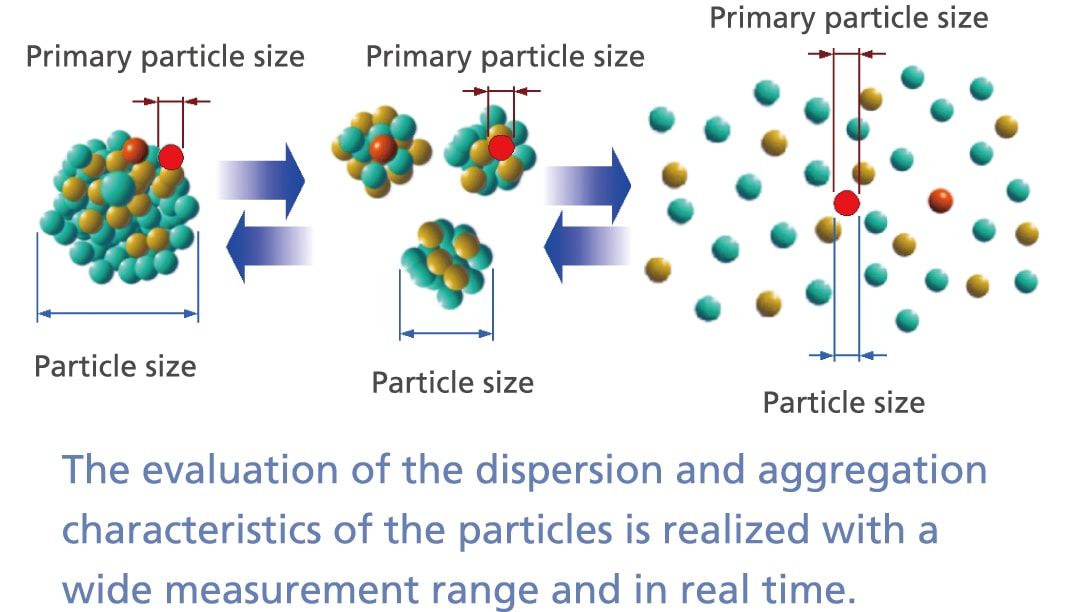

Wide Measurement Range : 7 nm to 800 μm From primary particles to sub-visible particles and contaminants

Changes in particle size across the 7 nm to 800 μm measurement range can be continuously measured using a single light source, single optical system and single measurement...

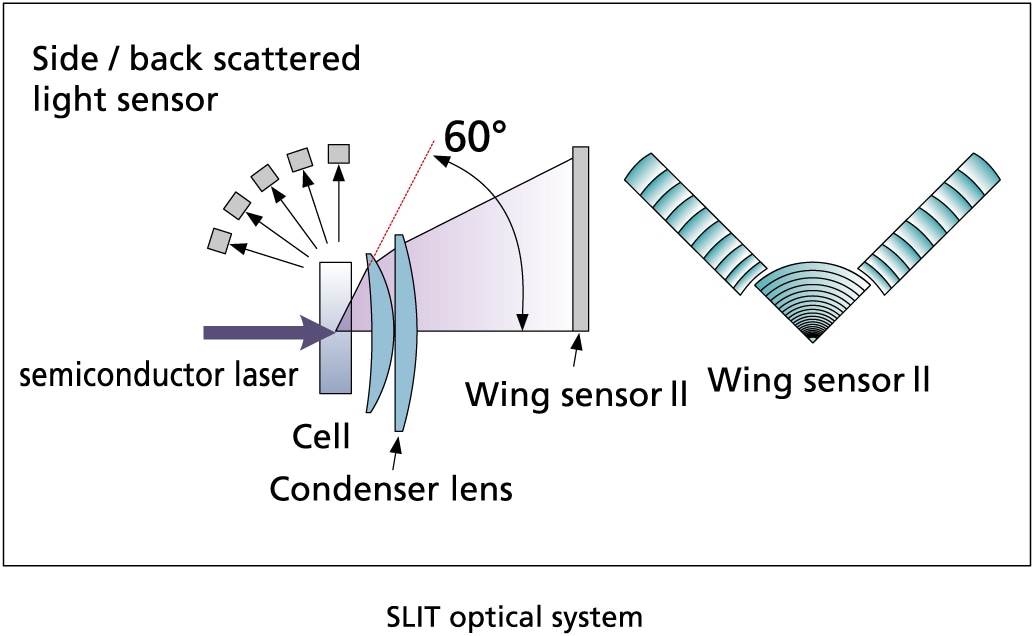

Single detection face continuously captures forward- scattered light up to a 60° angle

The target particle size range is seamlessly covered using a single measurement principle, single optical system, and single light source. Additionally, because the SALD-7500...
$Eliminates the mistake or trouble of selecting refractive indices$

Eliminates the mistake or trouble of selecting refractive indices

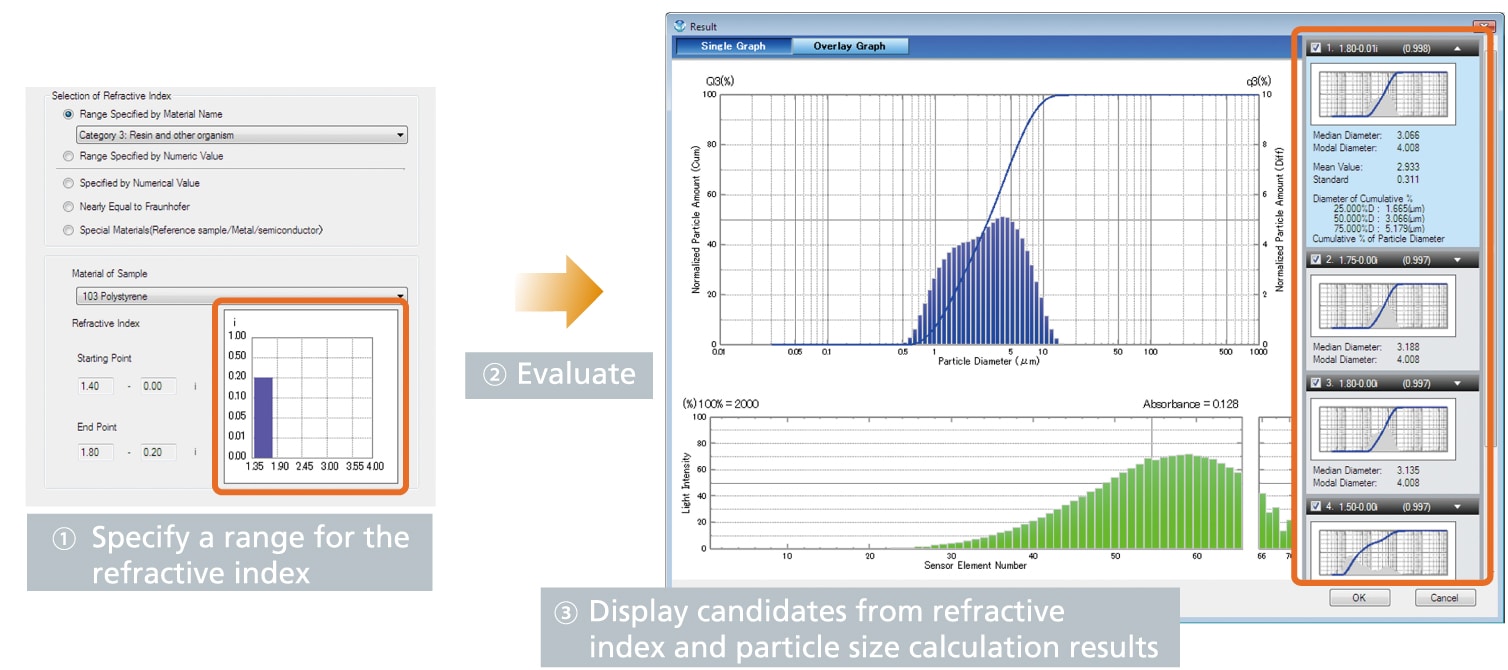

Automatic Refractive Index Calculation Function
Selecting a refractive index was an unavoidable part of using the laser diffraction method, where generally a published value was entered, but...

Learn more
