NJ-SERVO Series

Electric Motor Driven Actuator

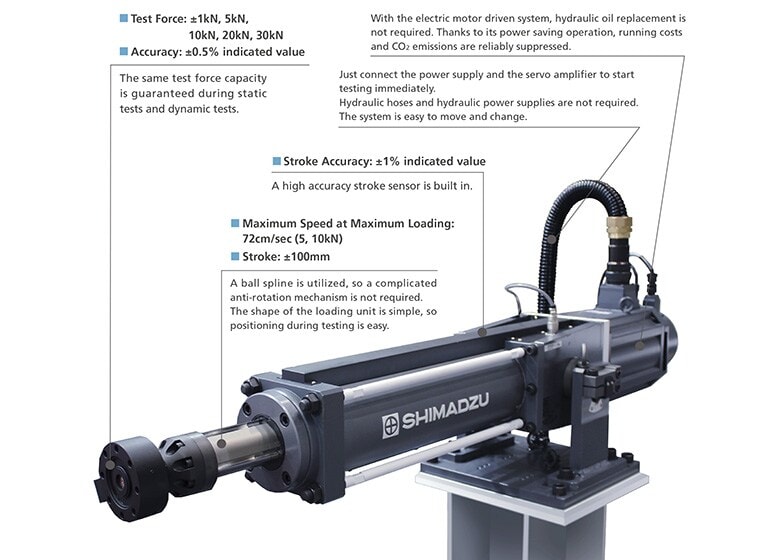

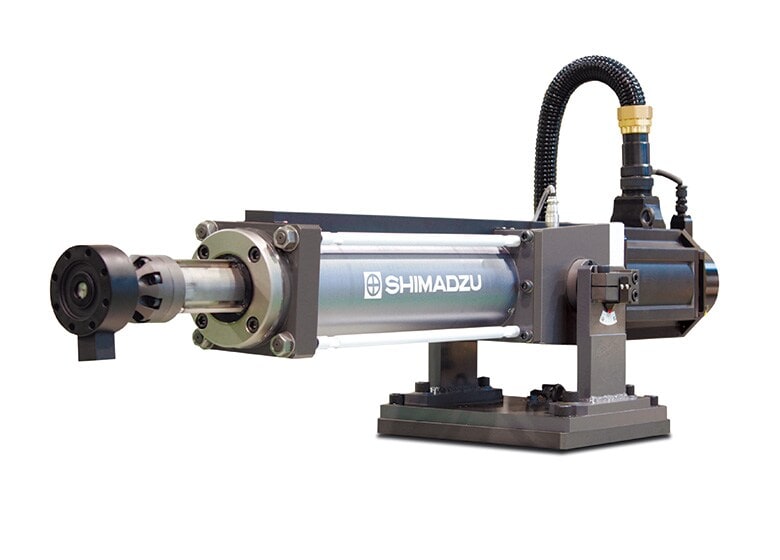

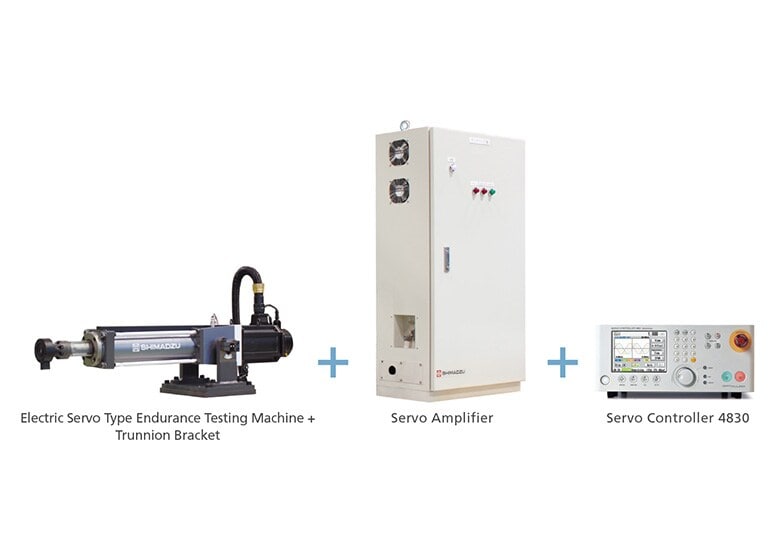

The NJ-SERVO electric motor driven actuator utilizes an electric motor drive system. High accuracy test control is enabled by a special servo motor and stroke displacement measurement sensor. In addition, the system configuration is simpler in comparison to hydraulic actuators, so it is easy to maintain, and achieves power savings and space savings. This system accommodates a wide range of tests with a high degree of expandability. This includes everything from endurance evaluations of the main body and assemblies of automobiles, aircrafts, and other transportation equipment to endurance evaluations of stand-alone parts; from multi-axis tests combining multiple actuators to uniaxial tests; and from sine waves to working waveform simulation tests.

Features

  • The Performance Required for Endurance Tests
    The Performance Required for Endurance Tests
    The same test force capacity is guaranteed in static tests and dynamic tests.
    High speed tests at up to 72 cm/sec are supported.
    The system achieves high peak reproducibility, and high accuracy measurement and control.
  • Power Savings of Approximately 75%
    Power Savings of Approximately 75%
    The electric motor driven actuator only uses the power output required for each test, so power consumption is substantially reduced in comparison to hydraulic actuators with similar specifications....
