UFPLC - Ultra Fast Preparative Liquid Chromatography
Request More Information

Equipped with technology for trap and elute of target compounds on preparative scale.

Significantly reduces the processes involved from preparative work to purification and powderization.

The ultra fast preparative and purification liquid chromatograph system, Nexera UFPLC, streamlines purification operations by automating the preparative process from separation to concentration, purification, and collection. In conventional preparative LC, the amount of fraction is diluted with the mobile phase, resulting in a huge volume, which takes time to evaporate, and post-treatment work, such as removal of salts derived from the mobile phase, is required. Nexera UFPLC concentrates target components by using a trap column. In addition, salts derived from the mobile phase and counter ions of the target compound are removed. Furthermore, because organic solvents are used to elute the target components,the time for evaporation can be significantly reduced. Nexera UFPLC can also be used for standard preparative chromatography by collecting the fractions directly without any concentration steps.

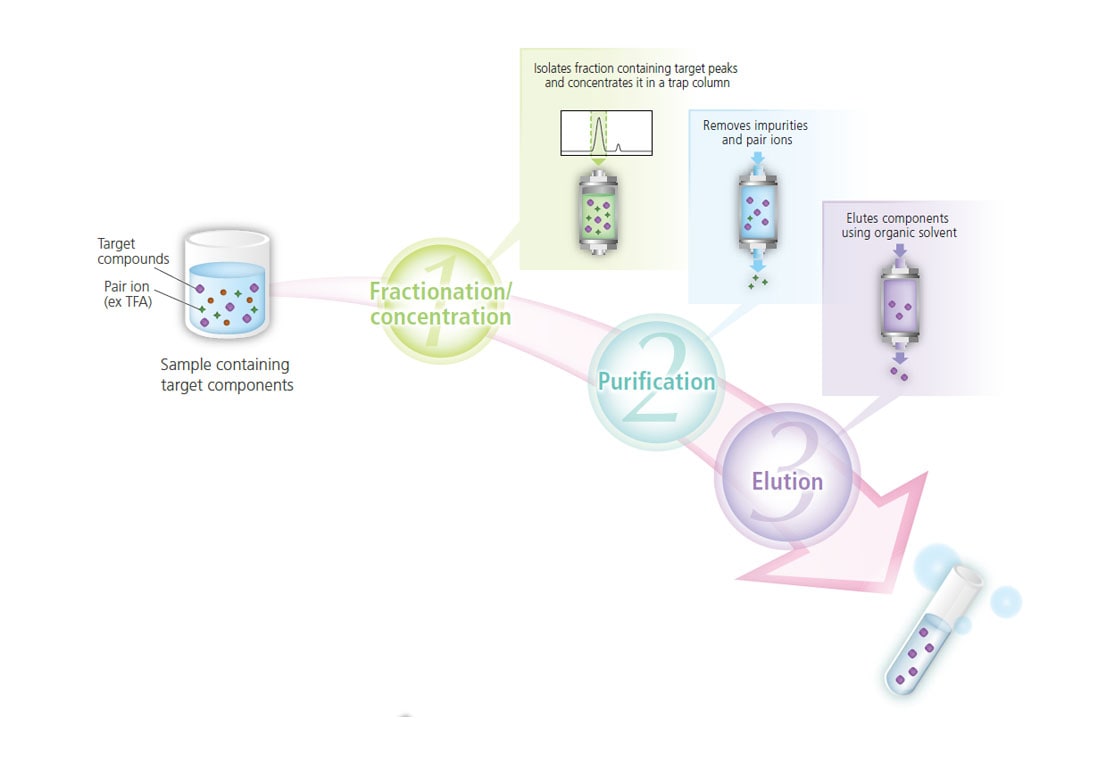

UFPLC Key Steps

Key features of the Ultra Fast Preparative Liquid Chromatography Systems
  • Fractionation and concentration: separate target compounds in a complex sample by preparative LC and introduce them into trapping columns
  • Purification: wash the trapping columns online to remove impurities and counterions
  • Elution: elute target compounds from trapping columns using organic solvent

Quick Specs

Solvent Delivery

LC-20AP, up to 150 mL/min, 42 MPa maximum pressure
Injection

LH-40, inject from 2 mL to 20 mL of sample
Fraction Collection

LH-40, collect in a range of vessels from MTP to 1 L bottles
Detector

UV, PDA, ELSD, LCMS-2050, or any A/D compatible detector

Automatic Removal of Non-volatile Salts and Counter Ions

  • Online purification using trap columns

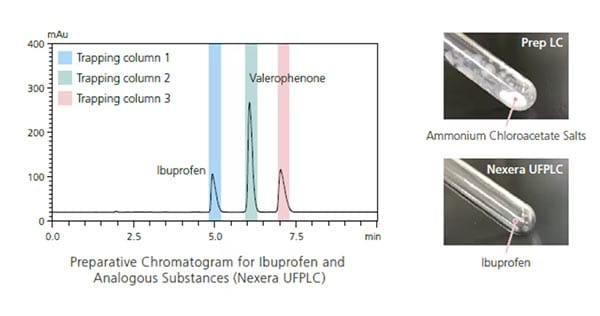

    In the conventional preparative LC, salts derived from the mobile phase are included in the recovered product. With Nexera UFPLC, salts derived from the mobile phase can be removed on the trap column. In the picture below, Ibuprofen was prepared using a solvent containing ammonium chloroacetate, a non-volatile salt. With conventional preparative LC, ammonium chloroacetate precipitated at the same time during evaporation. However, ibuprofen was recovered as a single component with Nexera UFPLC due to the use of a trap column.

  • Analyze various materials with rapid scans and powerful X-ray output
Return to Top ^

Concentration and Powdering of Target Ingredients in a Short Period of Time

  • CT scanning made easy with a single push button

  • Automated online process enables substantial labor and time savings

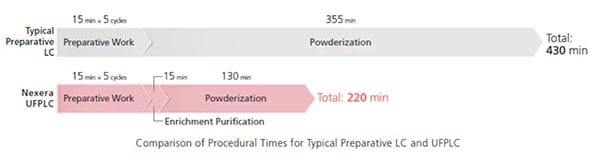

    Using Nexera UFPLC, samples are repeatedly injected and the target components are introduced into the same trap column, allowing concentration on the trap column (up to 100 mg capacity). After concentration, the target component is eluted with an organic solvent, allowing recovery of the target component at a high concentration and shortening the time for evaporation. The volume of recovered liquid and the time required for evaporation were measured when 100 mg of the target component, ibuprofen, was purified by trap purification. Compared to the conventional preparative LC process, the overall time was reduced by 50%.

Return to Top ^

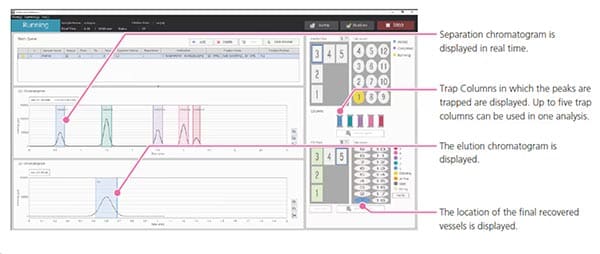

Easy to Operate Dedicated Software “Purification Solution”

  • Simplifies Settings Related to Preparative Purification

    The special Purification Solution software is equipped with peak tracking functions that allows to confirm the analysis status at a glance. To ensure that valuable samples are fractionated, Purification Solution offers three fractionation modes: automated, manual, and time-specified fractionation mode.

    Automated Fractionation Mode

    In this mode, the software automatically identifies peaks and collects fractions based on parameter settings. Fractions can also be simulated in advance by opening acquired data using the simulation function, which is specialised for optimising parameter settings. It also supports calculating multiple theoretical detector signals.



    Manual Fractionation Mode

    In this mode, the mouse pointer is used to select peaks for fractionation while viewing the window. If concentrating a sample by reinjecting it multiple times, the function remembers the timing of the first fraction, so that the fraction is automatically performed at the specified time for each injection thereafter.



    Time-Specified Fractionation Mode

    This mode collects fractions based on the retention times in previously acquired data. It is ideal for routinely performed preparative purification processes.



  • Save valuable space with the compact build of our benchtop CT scanner
Return to Top ^

Featured Content

Return to Top ^

Videos

  • Tired of Dealing with the Pain of Purification?

    • Preparative HPLC Systems

    The ultra fast preparative and purification liquid chromatograph system, Nexera UFPLC, streamlines purification operations by automating the preparative process from separation to concentration, purification, and collection. In conventional preparative LC, the amount of fraction is diluted with the mobile phase, resulting in a huge volume, which takes time to evaporate, and post-treatment work, such as removal of salts derived from the mobile phase, is required. Nexera UFPLC concentrates target components by using a trap column.
