UF-Amino Station

LC/MS Ultra Fast Amino Acid Analysis System

Analyze 38 amino acid components in just nine minutes!

Two major problems exist with traditional amino acid analysis techniques. The first technique (ion-exchange chromatography with postcolumn derivatization) allows many components to be analyzed at once but the method run times are long. The second technique (reverse-phase HPLC with pre-column derivatization) enables faster analysis but the number of analyzed components is limited. As a result, chemists are forced to make a decision to either analyze a large number of components or have a fast method.

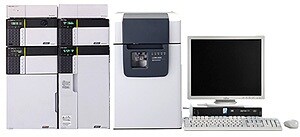

UF-Amino Station overcomes these limitations. Jointly developed by Shimadzu and Ajinomoto Co., Inc., it features a special-purpose, fast analysis column and a LCMS-2020 mass spectrometer, which supports ultra-fast analysis speeds, to achieve the simultaneous analysis of 38 amino acid and amino acid-related components* in just nine minutes. Additionally, it automates the derivatization reaction to eliminate the need for cumbersome pretreatment procedures by manual operation.
UF-Amino Station is an excellent tool for the analysis of food products, such as meat and fermented foods containing many impurity components, and for the biochemical analysis of culture fluid.

* Permits the analysis of 38 amino acid-related components, such as anserine, citrulline, taurine, and GABA (γ-aminobutyric acid), in addition to the 20 major amino acid components.

Features

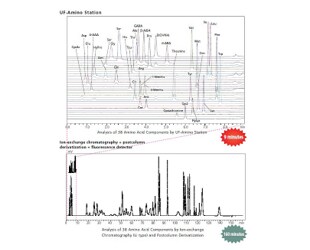

Fast Simultaneous Analysis of 38 Amino Acid Components in Nine Minutes

The combination of a special-purpose, fast-analysis column and LC/MS allows for shorter analysis times than conventional techniques.

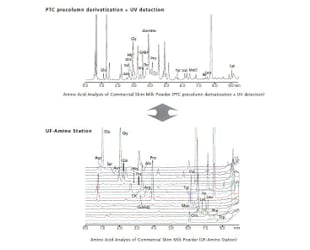

LC/MS Offers Superb Detection Selectivity

Using an LC/MS instrument provides accurate analytical results even with difficult samples containing many impurities.

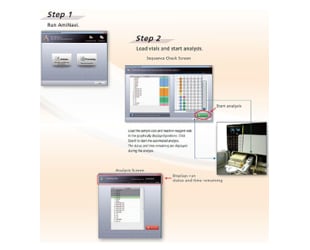

AmiNavi™ Software Simplifies Operation

Analyze a sample quickly and efficiently with AmiNavi dedicated software, which provides complete support for the full range of analysis operations.

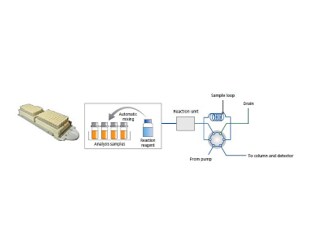

Automated Derivatization Improves Efficiency and Reliability

A fully automated derivatization can occur by using an autosampler to automatically pretreat the sample, eliminating concerns about human error during the derivatization process.
