Upgrade Your Analysis with LCMS-9050: Precision Perfected

Quadrupole Time-of-Flight Liquid Chromatograph Mass Spectrometer

Add Bookmark

LCMS-9050 Quadrupole Time-of-Flight Liquid Chromatograph Mass Spectrometer
Request More Information

Fast and accurate quadrupole time-of-flight (Q-TOF) mass spectrometry system

The LCMS-9050 analyzes compounds with speed and accuracy to support a range of applications

The LCMS-9050 delivers the highest possible levels of mass accuracy. The system’s temperature control feature stabilizes samples during temperature changes to improve mass accuracy, enabling you to get the precise data you need. This feature also reduces the need for calibration, so you can focus on other tasks.

The LCMS-9050 system is also designed for fast and stable polarity shifting. With its high-speed capabilities, you can analyze positive and negative ions simultaneously, saving time and increasing throughput.

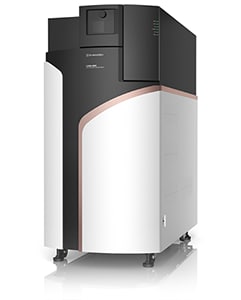

Key Features

LCMS-9050 Q-TOF Mass Spectrometer Key Features
  • Automated tuning for easy operation
  • Easy-to-replace parts for simple maintenance
  • Eco-friendly design to reduce waste
  • Compact design to save space
  • Flexible extensions to support a range of applications
  • LabSolutions Explore software for high-volume analysis

Quick Specs

TOF mass range m/z 10 to 40,000
Resolution (TOF) 45,000 FWHM
Mass Accuracy < 1 ppm at m/z 622.5662
Maximum acquisition rate 100 Hz

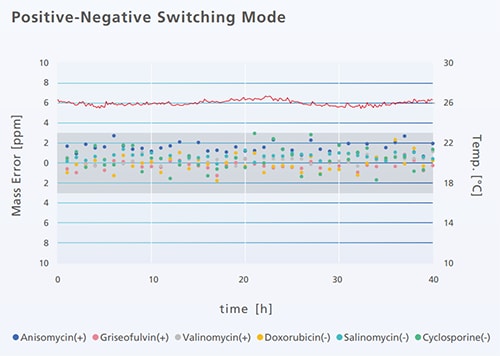

Fast, stable polarity shifting saves time and increases throughput

  • Analyze positive and negative ions simultaneously

    The LCMS-9050 system performs fast polarity switching using its temperature-controlled electrical system and UF stabilization algorithm. You can use the system to analyze positive and negative ions simultaneously, rather than separately. This combined analysis enables you to save time, increase throughput and obtain more consistent mass accuracy measurements.

  • Fast, stable polarity shifting saves time and increases throughput
Return to Top ^

Stable operations with automated features to simplify calibration

  • Stable operations with automated features to simplify calibration

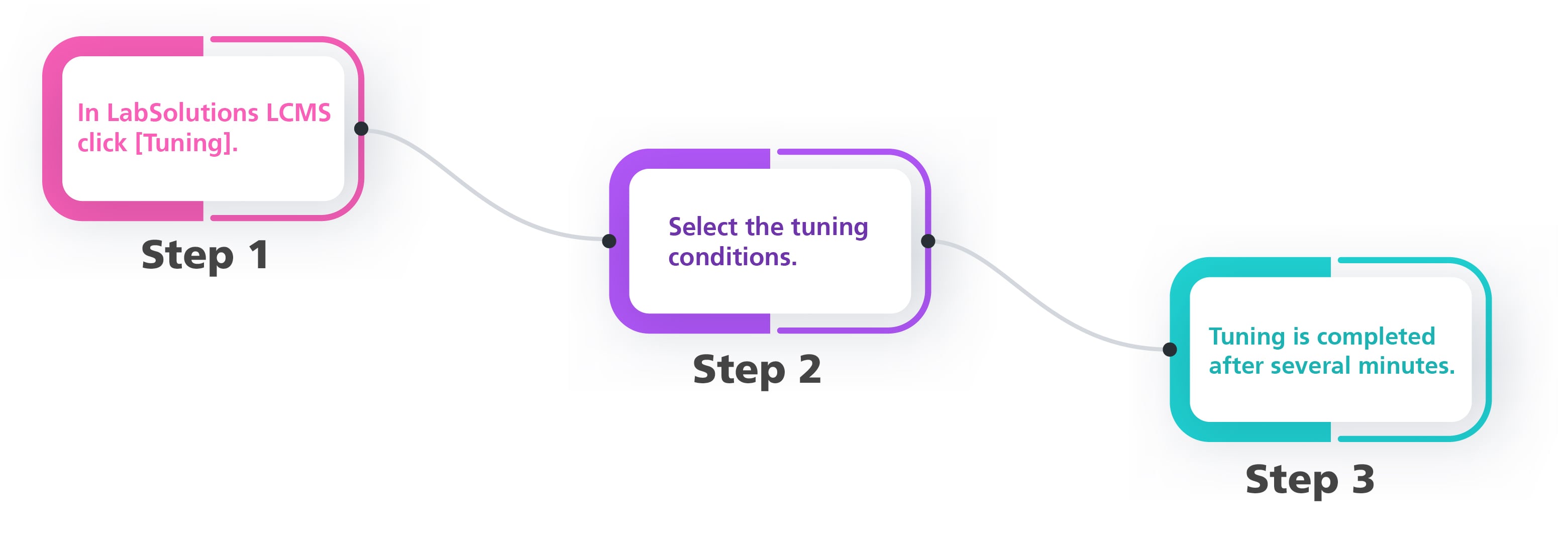

  • Autotuning feature to simplify mass calibration

    The LCMS-9050 system includes an autotuning feature to simplify the calibration process. This feature automatically corrects parameters like mass accuracy, resolution and sensitivity. Using the LabSolutions™ LCMS platform, you can select various tuning modes for calibration. This intuitive platform enables even first-time users to quickly and easily calibrate the system.

Return to Top ^

High mass accuracy levels for more reliable sample analysis

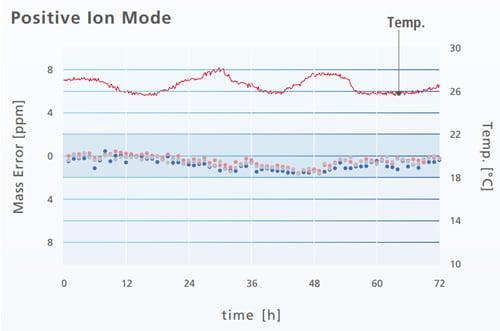

  • Precise temperature control for high mass accuracy

    The LCMS-9050 system is equipped with a high-precision temperature control system that inhibits even tiny mass variations caused by external factors. Therefore, analysts can use the system to measure accurate mass values without having to invest extended time and effort for mass calibration.

  • High mass accuracy levels for more reliable sample analysis
Return to Top ^

Featured Content

Latest Webinar

Learn more

Videos

  • LCMS-9050

    • Liquid Chromatograph-Mass Spectrometry
    • Quadrupole Time-of-Flight LC-MS/MS

    The LCMS-9050 is a Q-TOF mass spectrometer designed for the most reliable and easy acquisition of accurate masses in the real laboratory settings. With the proprietary innovation for fast polarity switching, it has the unique capability for high-confidence identification of challenging compounds and high-throughput screening of multiple unknowns. All sorts of applications are possible by the abundance of optional accessories and front-end configurations that leverage the instrument power. With the LCMS-9050, Shimadzu introduces a new era in time-of-flight mass spectrometry and continues Shimadzu’s tradition of taking on new challenges in LCMS.
